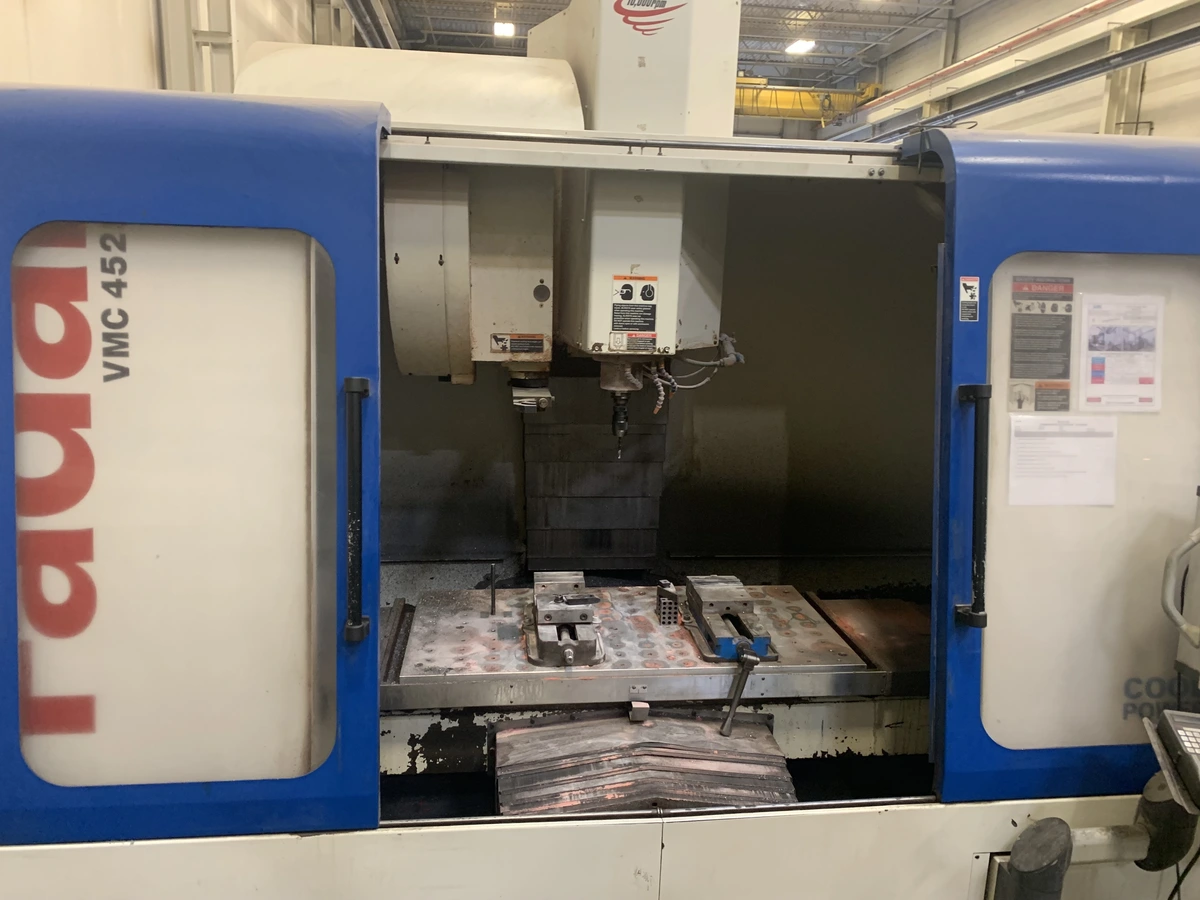

Fadal VMC4525HT Vertical Machining Center (2006)
Have one to sell?
ConditionUsed
1 available
Side mount Tool Changer,
X-Axis Travel: 45″
Y-Axis Travel: 25″
Z-Axis Travel: 24″
Cutting Feed Rate: 0.01 – 400 ipm
Rapid Feed Rate: 900 IPM (X/Y); 700 IPM (Z)
Axis Drive Motor (X/Y/Z): AC 3,800 lbs peak thrust
Table Size: 53.5″ x 25.0″
Floor to Table: 31″
Table Capacity: 4,250 lbs
Spindle Nose to Table: 4″ – 24″
Spindle Center to Column Ways: 27.87″
Main Motor: 30 HP
Spindle Speed: 10 – 10,000 RPM
Spindle Taper: No. 40
Auto Tool Changer: 24
Electrics: 240 V, 3 Ph, 50/60 Hz
Full Load: 50 Amp
Fanuc 18iMB5 CNC
24 Position Automatic Tool Changer- Side Mounted
Manual Pulse Generator / Remote Jog Handwheel
Automatic 2 Speed Vector Motor- 30 HP
High Torque
Side mount Tool Changer,
Imperial
| size | 45" x 25" |
| X Travel | 45" |
| Y Travel | 25" |
| Z Travel | 24" |
| Power | 30 hp |
| RPM | 10,000 RPM |
| # ATC | 24 |
| Taper | 40 |
| Control | CNC (Fanuc 18iMB CNC Control) |
| Dimensions | 128″ x 90″ x120″ |
| Weight | 13600 |
X-Axis Travel: 45″
Y-Axis Travel: 25″
Z-Axis Travel: 24″
Cutting Feed Rate: 0.01 – 400 ipm
Rapid Feed Rate: 900 IPM (X/Y); 700 IPM (Z)
Axis Drive Motor (X/Y/Z): AC 3,800 lbs peak thrust
Table Size: 53.5″ x 25.0″
Floor to Table: 31″
Table Capacity: 4,250 lbs
Spindle Nose to Table: 4″ – 24″
Spindle Center to Column Ways: 27.87″
Main Motor: 30 HP
Spindle Speed: 10 – 10,000 RPM
Spindle Taper: No. 40
Auto Tool Changer: 24
Electrics: 240 V, 3 Ph, 50/60 Hz
Full Load: 50 Amp
Fanuc 18iMB5 CNC
24 Position Automatic Tool Changer- Side Mounted
Manual Pulse Generator / Remote Jog Handwheel
Automatic 2 Speed Vector Motor- 30 HP
High Torque
