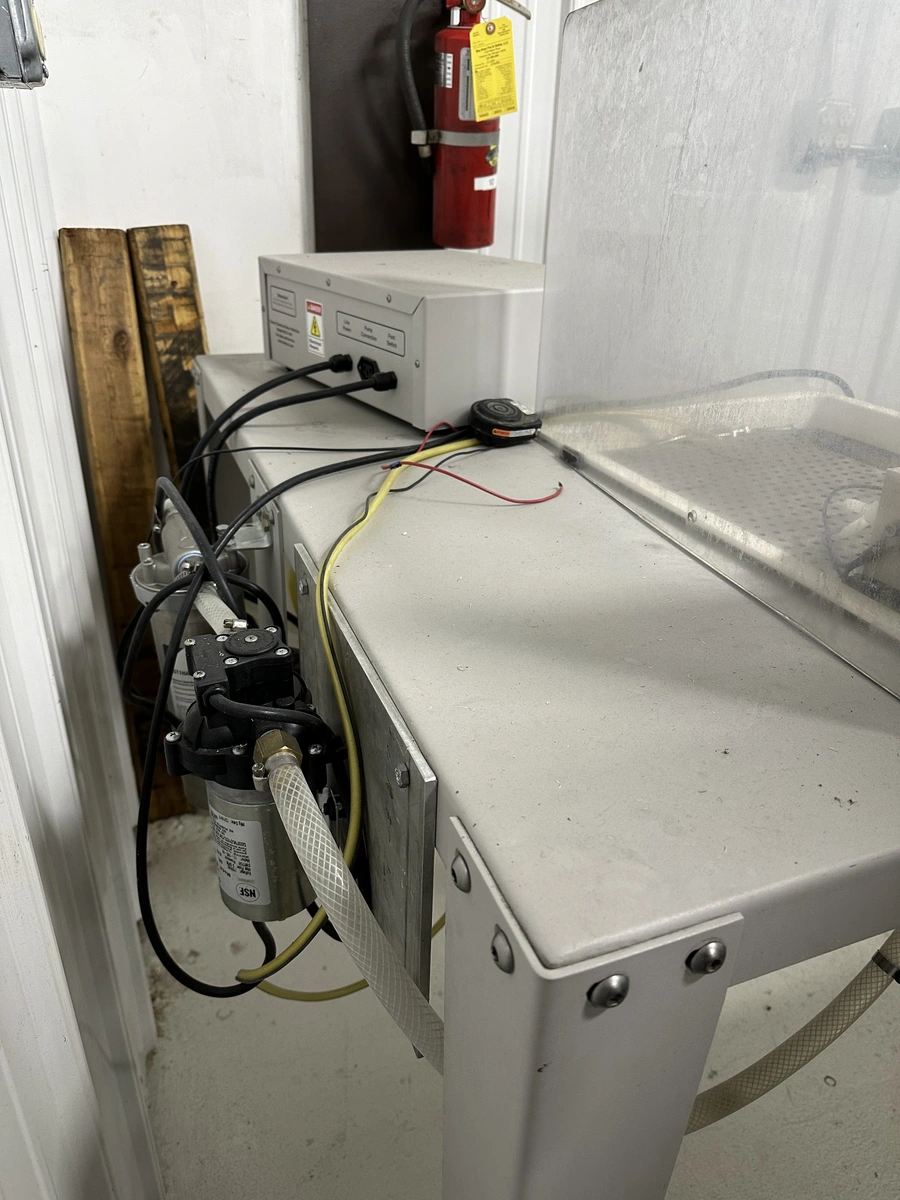

SCI Spider ECD-1001 Electro Chemical Deburr Processor

Electro Chemical Deburr Process
Electro chemical deburring offers selective
material removal for hard-to-get-at burrs.
• Process removes burrs preferentially, minimal
effect on parent material
• Easy to use, repeatable results, low cost
Will not harm parts
• Non-contact deburring
• No secondary burrs created
How it works
• Electrode is placed near the burr
• Electrolyte solution floods the area
• A small DC current flows from the part to the
electrode
• Burrs are dissolved and flushed away
Deburring of Medical, Aerospace, and Hydraulic
parts requiring a clean, repeatable, burr-free finish
• 55 V DC 10A continuous power
• Proprietary “ARC Quenching Circuitry” eliminates
scrap parts due to probe short circuit
• Custom probe designs (workpiece specific)
• Deburring of cross holes, intersecting features,
and deep hole locations
