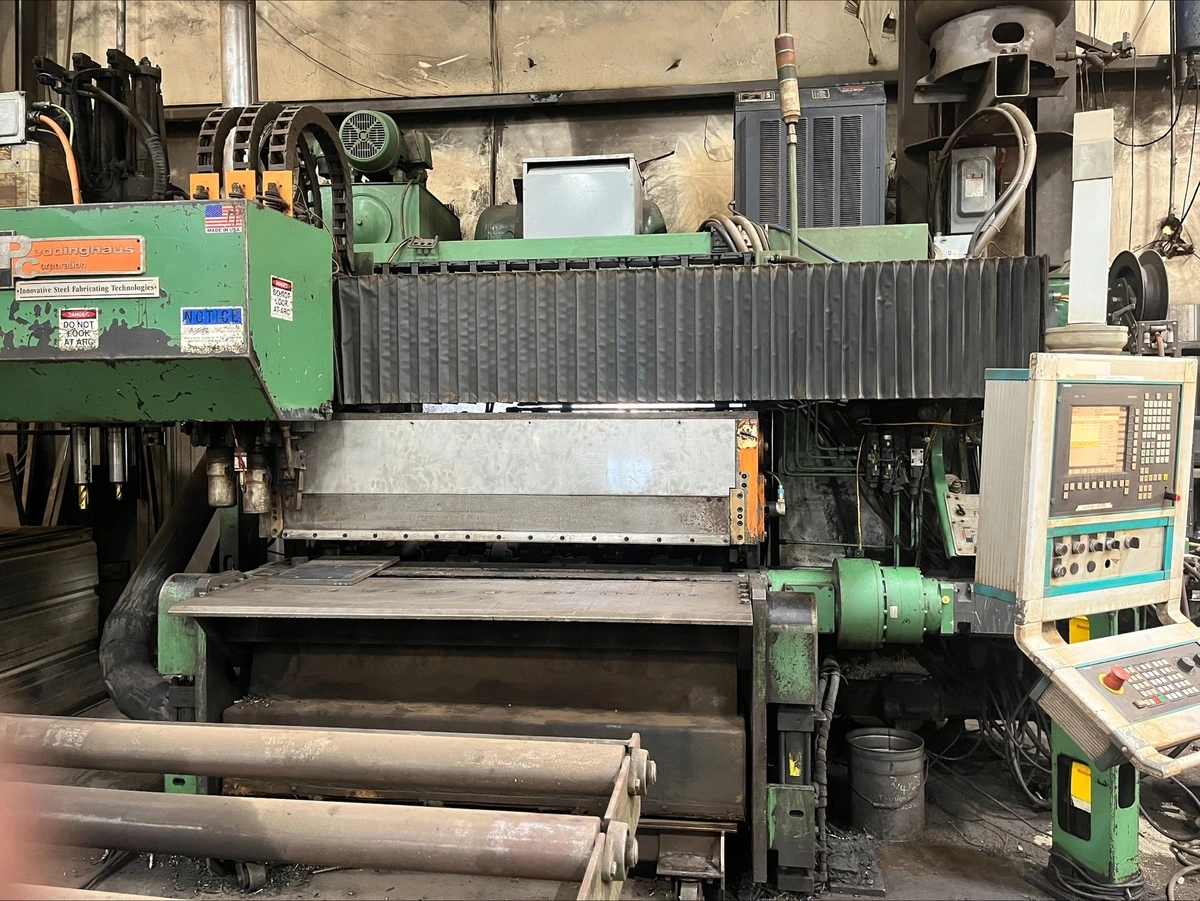

Peddinghaus Model FDB 1500 Plate Processing System (2007)
Have one to sell?
ConditionUsed
1 available
This CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burn table systems. The FPB-1500 provides constant material output to downstream processes.
The FPB-1500 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects.
Peddinghaus Model FDB 1500 Plate Processing System
Plate size: 59" x 236"
Number of drilling agregates: 3 Stk.
Sheet thickness : 1.96" Maximum
Sheet thickness : .19" Minumum
Drilling Capacity Diameter: 1.57" Maximum
Drilling Capacity Diameter: .31" Minimum
Total power requirement: 33 HP
Machine Weight:
Machine Dimensions:
Siemens Sinumerik 810 CNC Control
Hypertherm HySpeed HT2000LHF Plasma Cutting System
New Software with Automatic Nesting - Peddinest
20' Infeed Roller Conveyor
10’ Outfeed
1 - Hydraulic unit
Honeywell Safety Light Barrier System
Donaldson Dust Collector
