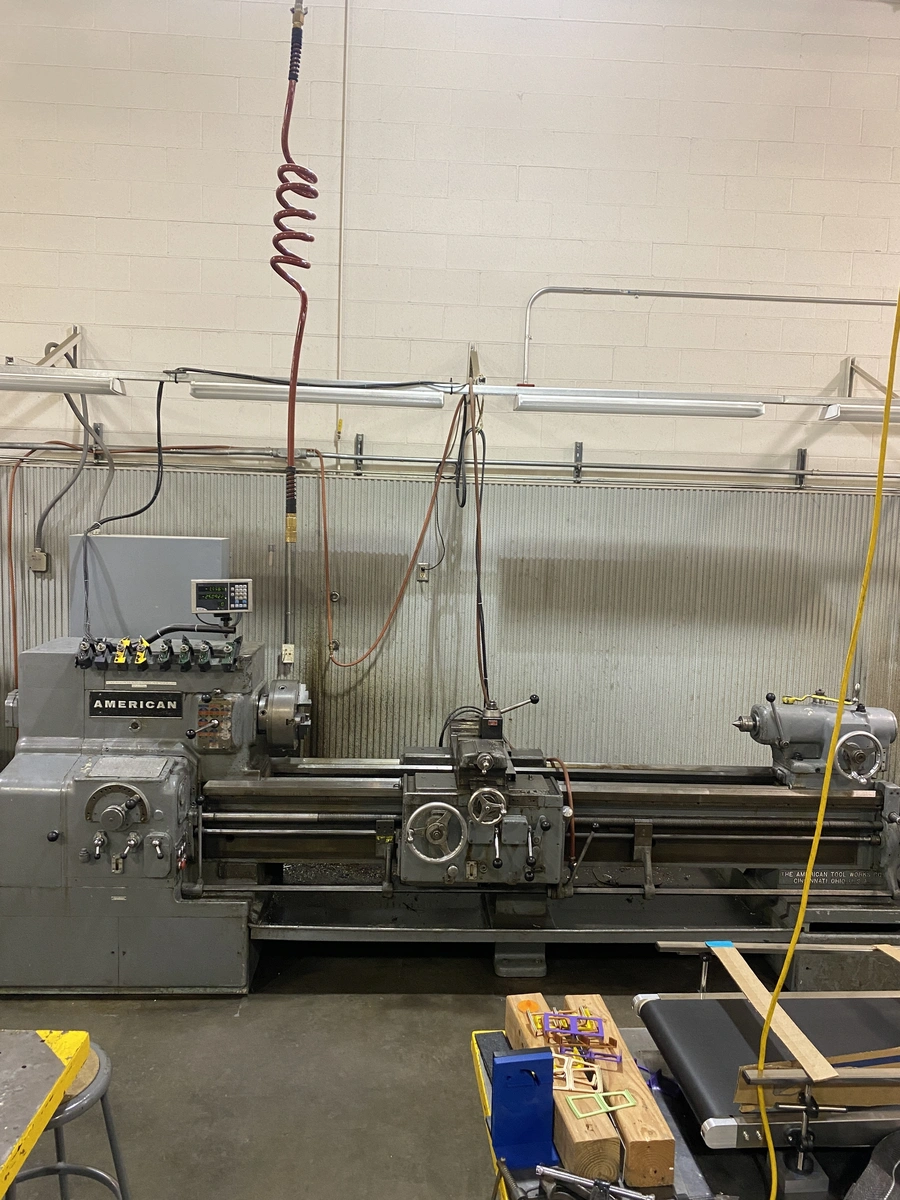

American Style C 16" x 78" Engine Lathe

CATALOG SPECIFICATIONS:

Chuck Size - 12" 3 Jaw
Hole Thru Spindle - 2"
Swing Over Bed Ways, Rated - 16"
Swing Over Bed Ways, Actual - 21.5"
Swing Over Carriage Wings - 20"
Swing Over Cross-Slide - 13"
Distance Between Centers - 78"
Cross-Slide Cross-Feed Travel - 12.25"
Top-Slide Cross-Feed Travel - 4"
Tailstock, Spindle Diameter - 4"
Tailstock, Spindle Travel - 10"
Tailstock, Spindle Taper - #4 MT
(27) Spindle Speeds, Range - 15 to 1000 RPM
(66) Carriage Longitudinal Feeds - .0015 to .091 IPR
(66) Thread Changes, Range - 2 to 120 TPI
Weight, Approximately - 10500 LBS
