| size | 10: chuck | 10: chuck |
| Swing | 20.47" | 519.94 mm |
| Machining Length | 39" | 990.6 mm |
| Chuck Size | 10" | 254 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 11.81" | 299.97 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
Okuma Genos L300M Live Tool CNC Lathe (2014)
Max Swing Over Slant Bed: 20.47"
Max Swing Over Saddle: 14.81"
Chuck Size: 10"
Max Turning Length: 41.73"
X-Axis (Cross Travel): 9.25"
Z-Axis (Longitudinal Travel): 45.03"
Tool Turret Positions: 12
Spindle Nose: A2-6
Spindle Bore: 3.14"
Bar Capacity of Equipped Chuck: 75mm (2.95")
Spindle Horsepower: 19.4 HP
Spindle Speed Range: 20 - 3,000 RPM
Milling Spindle Horsepower: 9.1 HP
Milling Spindle Speed Range: 20 - 4,500 RPM
Rapid Traverse Rate: 984 IPM
Approximate Machine Dimensions: 78" x 158"
Approximate Machine Height: 85"
Approximate Machine Weight: 15,400 LBS

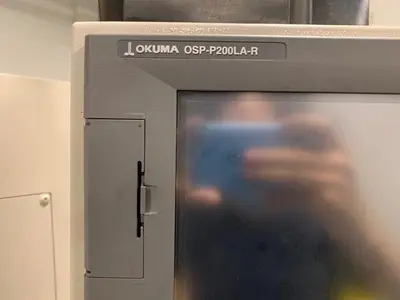

OSP-P200LA-R CNC Control
Kitagawa B-210A8 10" 3-Jaw Chuck
12 Station Servo Driven Turret
Programmable Tailstock
HI-G Control
Full C-Axis
Plane Conversion
Profile Generation
Rigid Tap
Lap4
