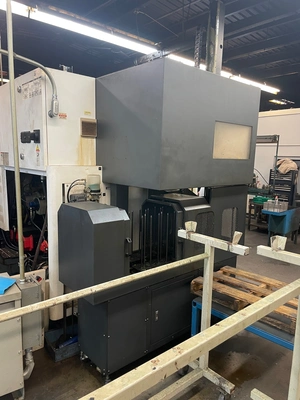

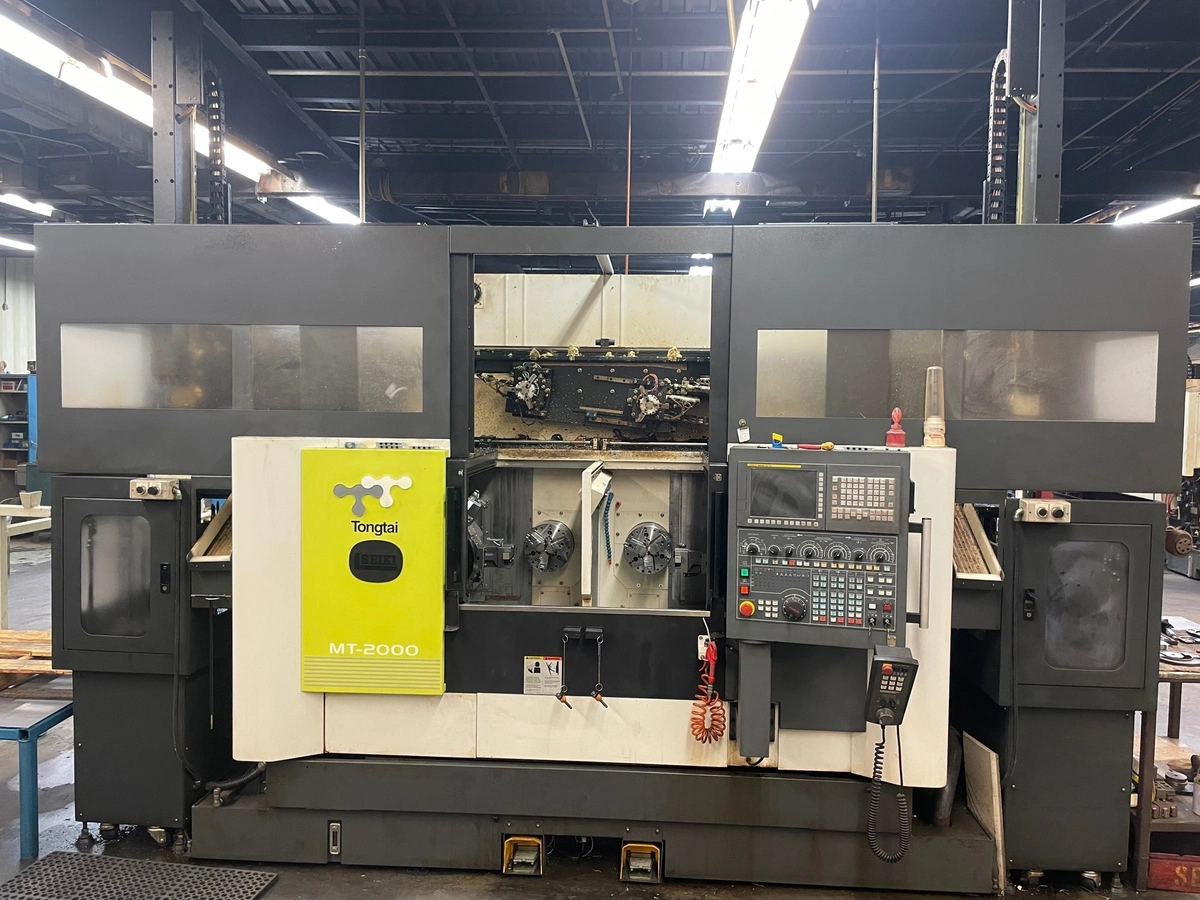

Tongtai MT-2000 Dual Spindle Dual Turret Lathe (2017)

Chuck Size: 8.0″
Max. Swing: 8.26″
Turning Diameter Max: 8.26″
Turning Length Max: 5.70″
Main Spindles: 2

Main Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Nose: A2-6
Bore: 2.59″

Second Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
Nose: A2-6
Bore: 2.59″

AXES AND TRAVELS
X1-Axis Travel: 6.10″
X2-Axis Travel: 6.10″
Z1-Axis Travel: 6.10″
Z2-Axis Travel: 6.10″

TOOLING
Simultaneous Cutting Tools: 2

Primary Tool Carrier: Turret Left
Max Tools Turning: 12 Rotary: 12
Tool Shank Size- Square: 1.00″ Round: 1.25″ Rotary: 1.25″
Rotary Tool Spindle: rpm: 5,000 Power: 7.50 hp

Second Tool Carrier: Turret Right
Max Tools Turning: 12 Rotary: 12
Tool Shank Size- Square: 1.00″ Round: 1.25″ Rotary: 1.25″
Rotary Tool Spindle: rpm: 5,000 Power: 7.50 hp
