| Table-W | 20" | 508 mm |
| Table-L | 76" | 1,930.4 mm |
| Horz/Vert | Horz | Horz |
| Power | 15 hp | 11.2 kW |
| Grinding Wheel Width | 5" | 127 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| size | 20" x 36" x 76" | 20" x 36" x 76" |
| Control | CNC (Fanuc OGC CNC) | CNC (Fanuc OGC CNC) |
| Dimensions | 16' x 9' x 10' | 16' x 9' x 10' |
| Weight | 50000 | 50000 |

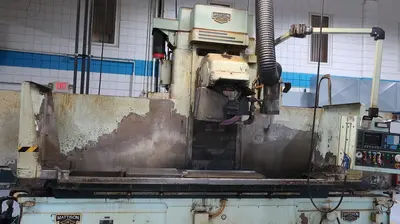

Mattison 20" x 36' x 76" Hi Precision CNC Surface Grinder, Fanuc O-GP Control, 30HP, (1996)
Incremental Downfeed: yes
Table Size: 96" x 20"
Standard Magnetic Chuck Size: 76" x 20"
Max. Grinding Length: 80"
Max. Grinding Width: 20"
Max. distance from table surface to spindle centerline: 36"
Max. Travel Longitudinal (Hydraulic): 96"
Table Speed Infinitely Variable: Yes
Crossfeed Traverse Travel - Auto Increment: Yes
Max. auto traverse travel: 96"
Handwheel per Revolution: .0001"
Wheelhead Vertical Downfeed per Graduation: .0001"
Grinding Wheel Speed: 1361 RPM
Grinding Spindle Motor HP: 30 Horsepower
Standard Grinding Wheel Dimensions: 6" Width x 20" OD
Dimensions: 16' L-R x 9' F-B x 10' Ht. (Approximate)
GE Fanuc Series O-GC Control
Control on Pendant
Table Dresser - Cycled in control
Heidenhain Scales: Z & X
Coolant System
Wheel Guard
Hydraulic System
Splash Guards
