| X | 120" | 3,048 mm |
| Y | 40" | 1,016 mm |
| Z | 30" | 762 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 40 | CAT 40 |
Table Size 120" x 28"
X-Axis Travel 120"
Y-Axis Travel 40"
Z-Axis Travel 30"
A-Axis Travel +/- 32 Degrees
B-Axis Travel +/- 32 Degrees
Maximum Weight on Table 4,000 lbs
Spindle Taper CAT-40
Spindle Speeds 0 - 10,000 RPM
Main Spindle Power 40/30 HP
Automatic Tool Changer 32 Positions
Approximate Machine Weight 34,000 lbs.

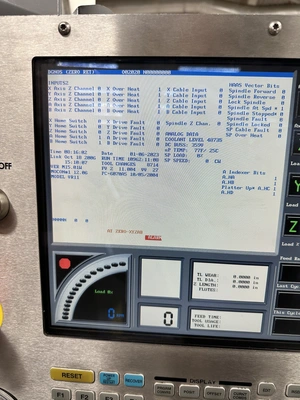

Haas CNC Control
Coolant Thru Spindle (300 PSI)
Linear Scales
Table Outriggers
Renishaw Probing System
High Speed Machining
16 MB Extended Memory
Rigid Tapping
Programmable Coolant Nozzle
Chip Auger
Hennig Chip Conveyor
Second Home Position
Power Failure Detection Module
Hard Drive / Floppy Drive / USB Drive
