Haas VF3 APC Vertical Machining Center (2001)
Have one to sell?
ConditionUsed
1 available

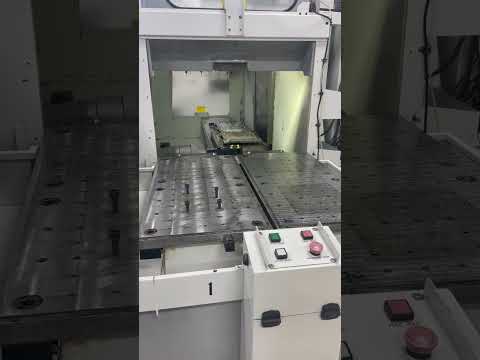

2 Pallet APC, Haas CNC, Programmable Coolant Nozzle, 20HP Vector Drive, Manual Pulse Generator / Remote Jog Handwheel, From Aerospace
Mfg Date / Installed New 02/2001
Pallet Size 40" X 19"
Number Of Pallets 2
Maximum Pallet Load 1,000 Lbs
Pallet Change Time 30 Seconds
Spindle Nose To Pallet Top 4" - 29"
X Axis Travel 40"
Y Axis Travel 20"
Z Axis Travel 25"
Rapid Traverse Rate X, Y & Z Axes 710 Ipm
Cutting Feed Rate 0.1 - 500 Ipm
Spindle Taper Cat 40
Spindle Speeds 0 - 7500Rpm
Spindle Motor 20 Hp
Tool Changer Capacity 24 + 1 (Side Mount)
Maximum Tool Weight 12 Lbs
Weight, Approx. 15,400 Lbs
Dimensions, Approx. 180"L X 100"W X 106"H
2 Pallet APC, Haas CNC, Programmable Coolant Nozzle, 20HP Vector Drive, Chip Auger, Videos Available
