| X | 59.1" | 1,501.1 mm |
| Y | 35.4" | 899.16 mm |
| Z | 30" | 762 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 41" | 1,041.4 mm |
| Table-L | 63" | 1,600.2 mm |
| Dimensions | 196" x 126" x 148" | 196" x 126" x 148" |
| Weight | 33000 | 33000 |

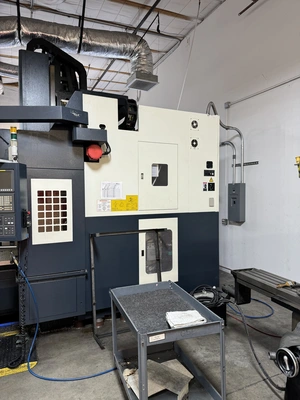

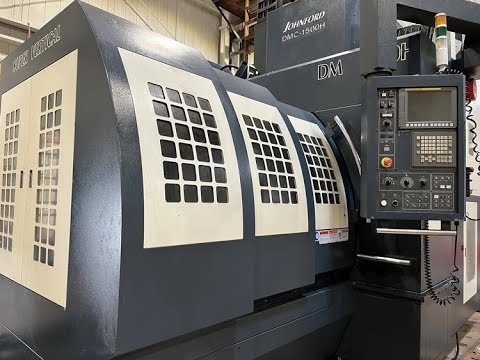

Johnford DMC-1500H Bridge Type Vertical Machining Center (2012)
Travels: 41" x 65"
Table Size:
X Axis: 59.1"
Y Axis: 35.4"
Z Axis: 30"
Spindle Nose To Table Top: 5.9" - 35.94"
Max. Table Capacity: 22,000 lbs.
Spindle Speeds: 6000 RPM
Spindle Motor: 25 HP
Tool Changer: 24 ATC Side Mount
Distance Between Columns: 41.7"
Rapid Traverse Rate: 944 ipm
Cutting Feed Rate: 477 ipm

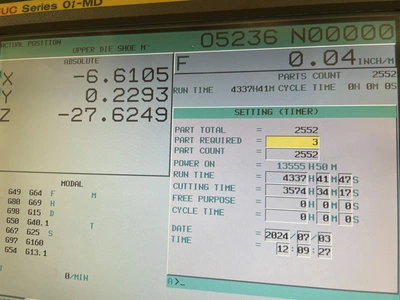

Hours 4337 Run Time
Hours 3574 Cutting Time
Dimension with the head at its highest point - 12 FT 8 IN
Dimension with the head at its lowest point - 12 FT 3 IN
Dimensions 196" x 126" x 148"
Weight 33000 Lbs
Fanuc OiMD with Manual Guide i
1000 PSI High Pressure Coolant Through Spindle
2-speed ZF Gearbox
Chip Conveyor
63" x 33 3/8" x 2" Sub Plate
Optional Ganro 20" 4th Axis Rotary Table with Tailstock and 5th Axis Trunnion Table
