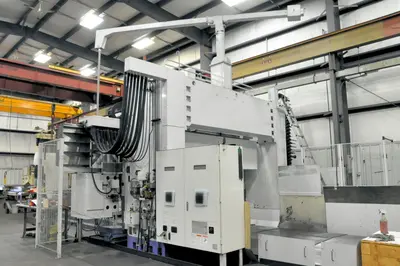

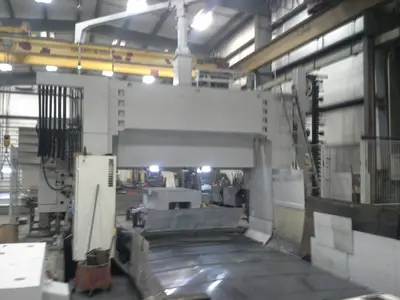

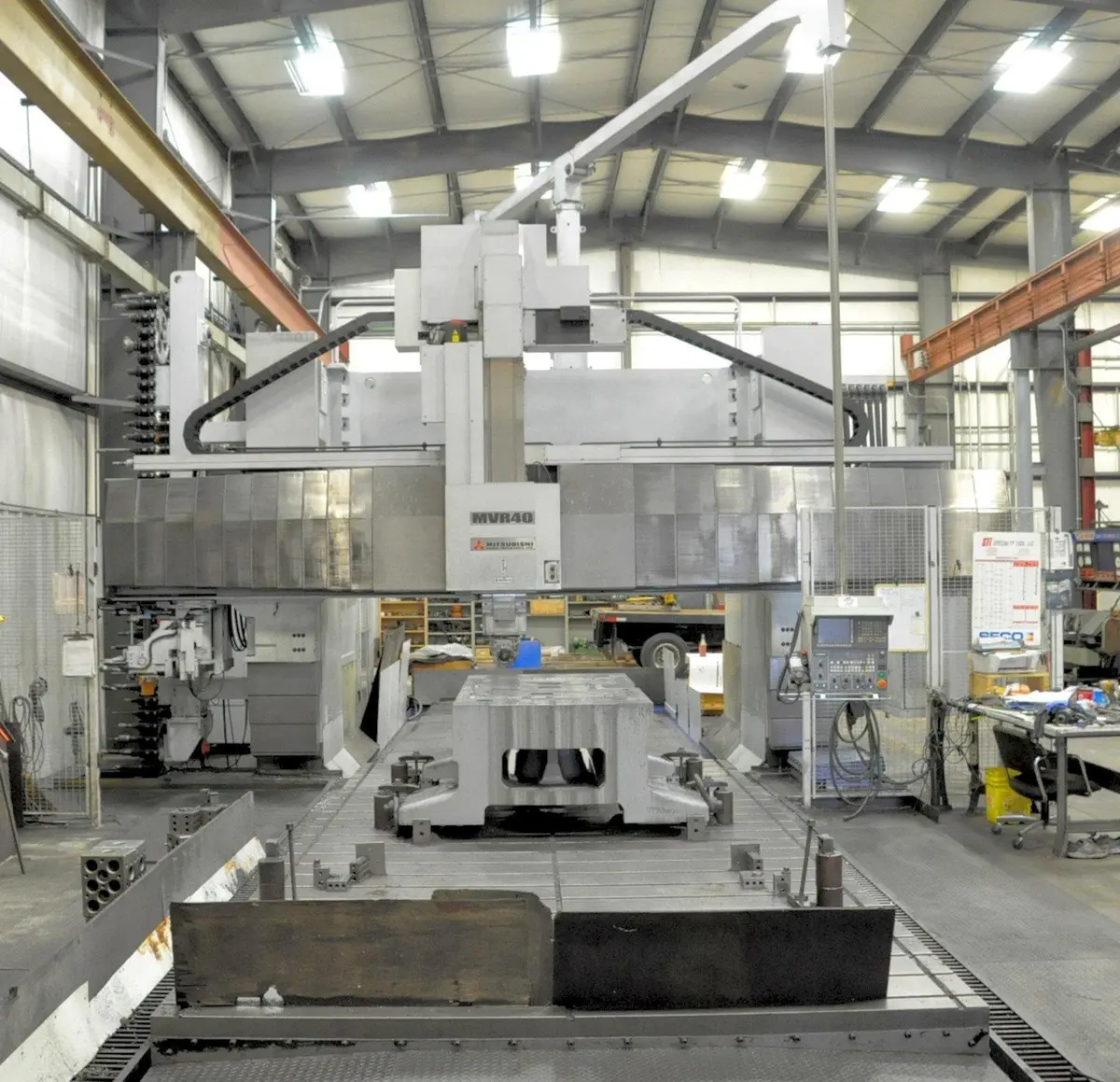

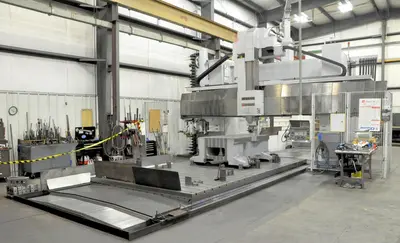

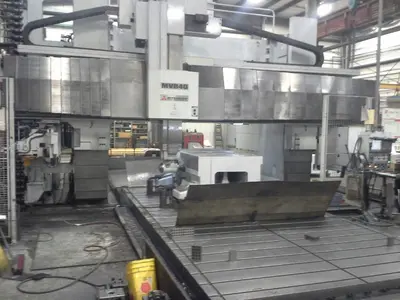

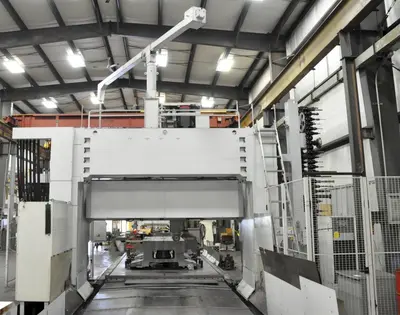

MITSUBISHI MVR40 5 Axis 5 Face Machining Center (2014)

Mitsubishi Model MVR-40 CNC 5 Face Bridge Type Machining Center

Table Size 236.22" X 118.11"
Distance Between Columns 147.60"
Maximum Height Under Spindle Nose 84.6"
X-Axis Travel, Table Longitudinal 244.10"
Y-Axis Travel, Head 165.35"
Z-Axis Travel, Spindle 27.55"
W-Axis Travel, Crossrail 31.49"
Ram Size 13.7" X 13.7"
Spindle Diameter 4.33"
Spindle Speeds 17-4000 Rpm
Spindle Taper No. 50
Spindle Drive Motor 40 Hp
Cutting Feeds .039-393.7 Ipm
X-Axis Positioning Accuracy +/- 0.0010/244.1"
Y-Axis Positioning Accuracy +/- 0.0008/157.5"
Z-Axis Positioning Accuracy +/- 0.0002/31.5"
W-Axis Positioning Accuracy +/- 0.0003/43.3"
Rapid Traverse, X-Axis 590.55 Ipm
Rapid Traverse, Y-Axis 866.14 Ipm
Rapid Traverse, Z-Axis 393.70 Ipm
Rapid Traverse, W-Axis 118.11 Ipm
