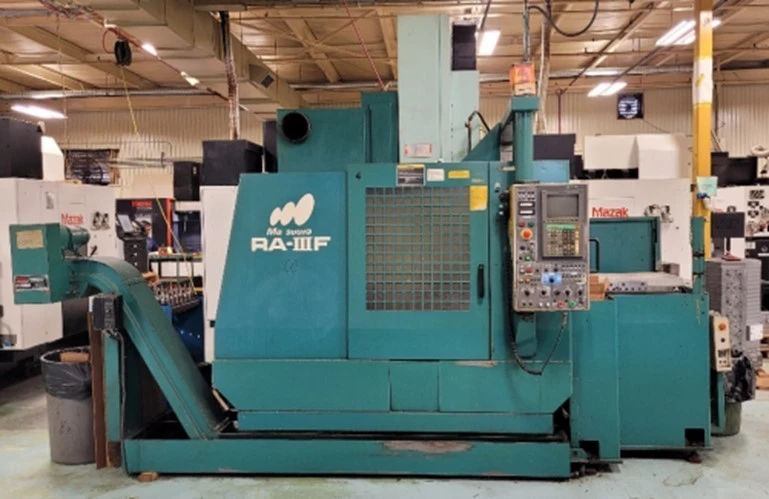

Matsuura Model RA-III F CNC Vertical Machining Center

Matsuura Model RA-III F CNC Vertical Machining Center

Pallet: Pallet Size (2 pallets) 31.5" x 19.3"
Maximum Pallet Load 660 Lbs
Travels: X-Axis Travel 31.5"
Travels: Y-Axis Travel 20.08"
Travels: Z-Axis Travel 19.7"
Spindle Nose to Table Top 5.9" - 25"
Spindle: Spindle Speeds (RPM) 30 - 8,000 RPM
Spindle Taper 40 Taper
Main Motor (30 min. / continuous) 15 / 10 HP
Tool Changer: Tool Changer Positions 30 ATC
Tool Change Time (Tool-to-Tool / Chip-to-Chip) 2 / 5 Sec.
Rapids: Rapid Traverse (X / Y / Z) 760 / 440 / 450 IPM
Cut Feed Rate 394 IPM
Dimensions: Floor Space (L x W x H) 154" x 131" x 107"
Weight (approx.) 20,000 Lbs
