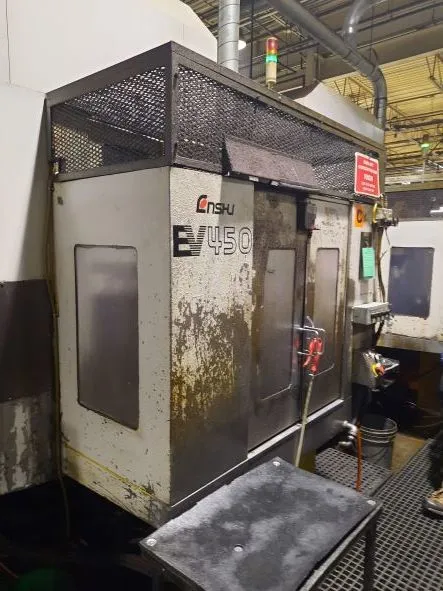

Enshu Ev450 3-Axis Twin Pallet Vertical Machining Center (2011)
Machining Centers, Vertical
| size | 20.9" x 15.7" Pallets |
| X Travel | 22" |
| Y Travel | 17" |
| Z Travel | 18" |
| Power | 20 hp |
| RPM | 10,000 RPM |
| # ATC | 20 |
| Taper | Cat #40 |
| Table-W | 20.9" |
| Table-L | 15.7" |
| # Axis | 3 |
| Control | CNC (Fanuc 21i-Mb) |
| Weight | 10,000 Lbs |
Distance, from top of table to spindle: 7.9" - 26"
Distance, front of column to spindle center line: 20.1"
Rapid Traverse Rate: X, Y, Z 1,575 Ipm
Cutting Feed Rate: 0.04 -591 Ipm
Maximum pallet load: 550 Lbs.
Pallet change time: 4.8 Seconds
Fanuc 21-Mb cnc control Chip Conveyor with Integrated High Pressure Coolant, Rigid Tapping
