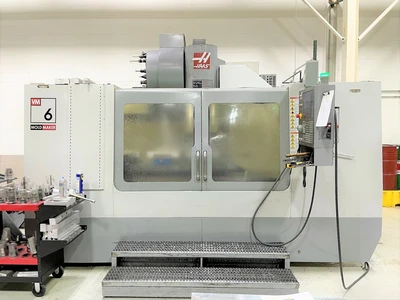

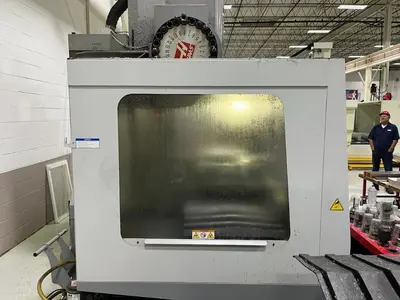

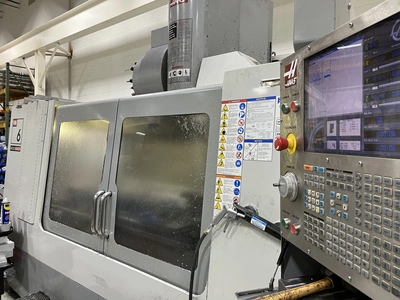

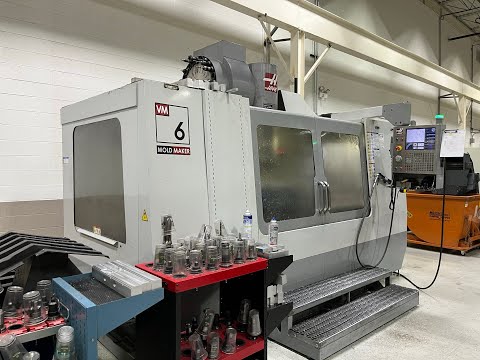

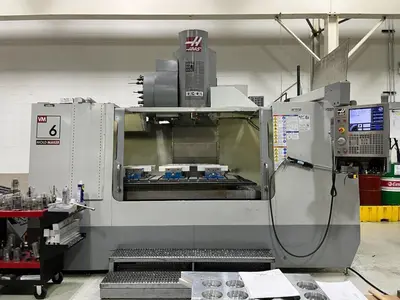

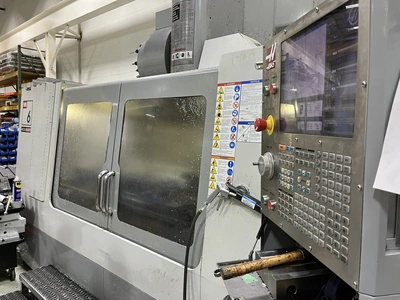

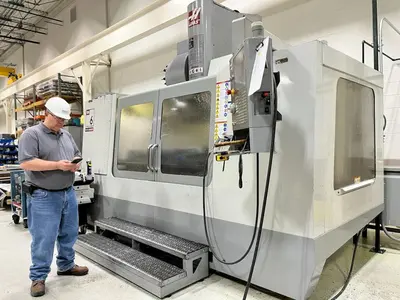

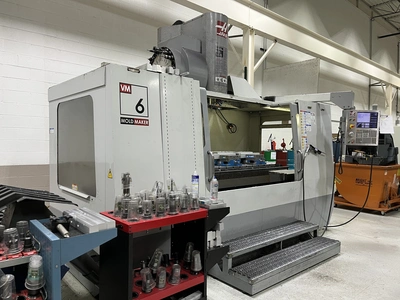

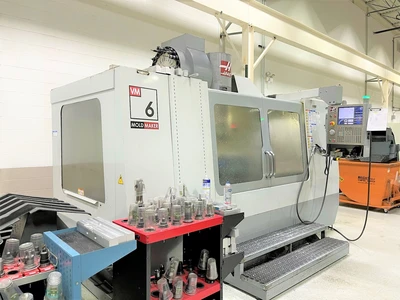

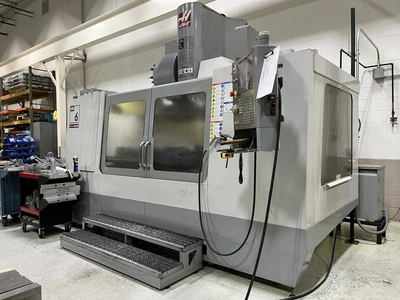

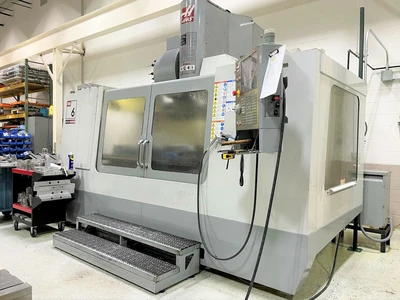

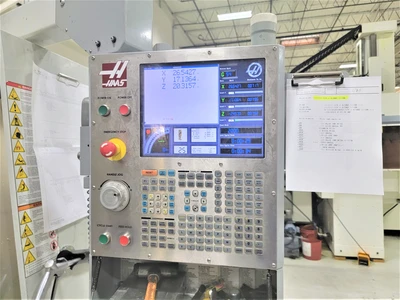

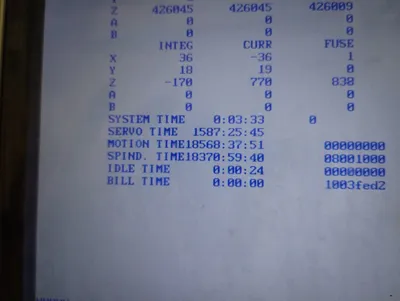

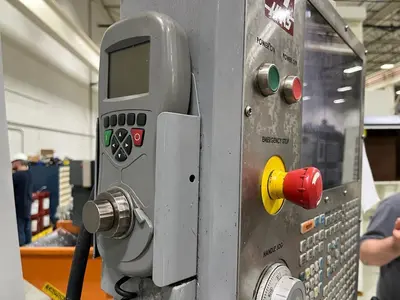

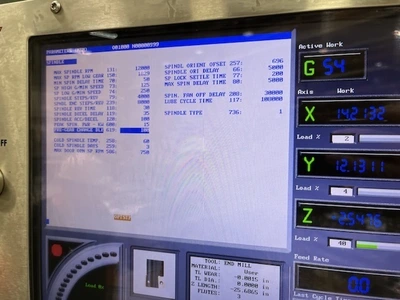

Haas VM6 Mold Maker Vertical Machining Center (2007)

Haas VM6 Vertical Machining Center (2007)

TRAVELS S.A.E METRIC
X Axis 64.0 in 1626 mm
Y Axis 32.0 in 813 mm
Z Axis 30.0 in 762 mm
Spindle Nose to Table (~ max) 34.0 in 864 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
SPINDLE S.A.E METRIC
Max Rating 40HP
Max Speed 15000 rpm 12000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper 40
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

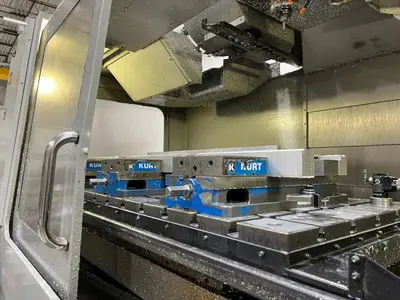

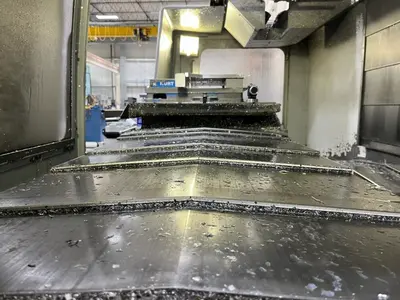

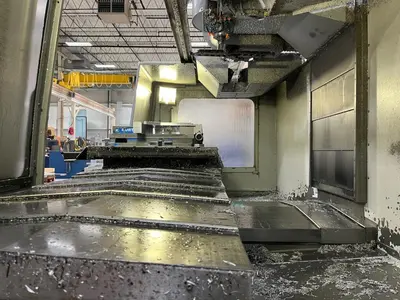

TABLE S.A.E METRIC
Length 64.0 in 1626 mm
Width 28.0 in 711 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
FEEDRATES S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 600 ipm 15.2 m/min
Rapids on Y 600 ipm 15.2 m/min
Rapids on Z 600 ipm 15.2 m/min
AXIS MOTORS S.A.E METRIC
Max Thrust X 3400 lbf 15124 N
Max Thrust Y 4100 lbf 18238 N
Max Thrust Z 5600 lbf 24910 N

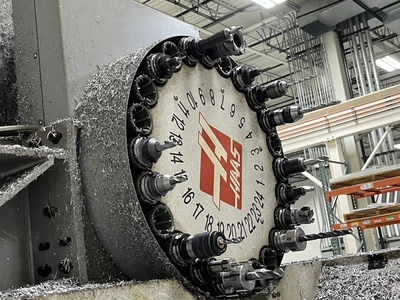

TOOL CHANGER S.A.E METRIC
Type SMTC SMTC
Capacity 24+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 16 in 406 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 2.8 s 2.8 s
Chip-to-Chip (avg) 3.6 s 3.6 s
GENERAL S.A.E METRIC
Coolant Capacity 95 gal 360 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 195 in x 102 in x 129 in 496 cm x 259 cm x 328 cm
Export Crate 195 in x 105 in x 130 in 496 cm x 267 cm x 331 cm
Weight 24000 lb 10887.0 kg
Domestic Pallet w/50+1 SMTC 195 in x 102 in x 131 in 496 cm x 260 cm x 333 cm
Export Crate w/50+1 SMTC 195 in x 105 in x 133 in 496 cm x 267 cm x 338 cm
Weight w/50+1 SMTC 24000 lb 10887 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 12000 rpm 12000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 40HP Vector Drive
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
