| size | 10" Chuck | 10" Chuck |
| Swing | 21.65" | 549.91 mm |
| Machining Length | 20.4" | 518.16 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 22 hp | 16.4 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 9.6" | 243.84 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Control | CNC | CNC |

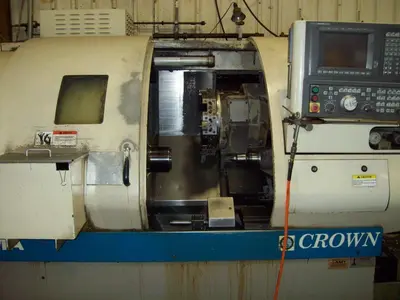

Okuma Model Crown 762S-BB 2 Axis Slant Bed CNC Lathe (1998)
Max Turning Diameter: 10.633"
Max Turning Length: 9.68"
Max Bar Capacity: 2.653"
Swing Over Bed: 21.653"
Distance Between Centers: 22.293"
X Axis Travel: 7.28"
Z Axis Travel: 20.47"
Rapid Traverse X Axis: 90 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle Nose: A2-8
Spindle Bore: 3.153"
Spindle Speed: 65-3500 RPM
Spindle Motor: 22 HP
Turret Capacity: 12 Station
Turret Index Time: 1 Second
SMW space saver 2000 Bar feed
Chip Conveyor
Parts Catcher
ATS S30 collet chuck
10" Kitagawa Chuck
Misc. collets, boring tool blocks, spindle liners
This equipment has been sold. Similar equipment available now is shown below.
