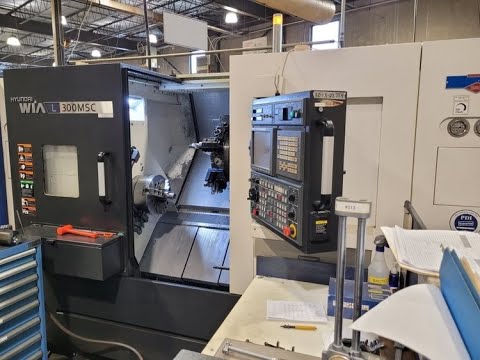

Hyundai Wia L300MSC CNC Turning Center With Live Milling and Sub Spindle (2015)

Hyundai Wia L300MSC CNC Turning Center With Live Milling and Sub Spindle (2015)

***** From Aerospace Facility *****

Std. Chuck Diameter 12" - 304 381 MM
Std. Chuck Diameter - SUB 8" - 203 MM
Swing Over Bed 750 MM
Swing Over Carriage / Cross Slide 480 MM
Max. Turning Diameter 500 MM
Max. Turning Length 600 MM
C-Axis Indexing 0.001 DEG
Spindle Nose A2-8 / A2-6 A2-11 / A2-6
Spindle Speeds 3,000 / 4,000 RPM
Spindle Bore / Main 90 mm / 3.15
Spindle Bore / Sub 65 MM / 2.5
Spindle Power 26.0 / 22.0 KW
Spindle Power - SUB 11.0 / 7.5 KW
Rapid Traverse Rates - X / Y 20 / 24 / 20 M/MIN
Number of Turret Stations 12
Driven Tool Speeds 4,000 RPM
Driven Tool Motor 5.5 / 3.7 KW
Electrics 220/3/60
