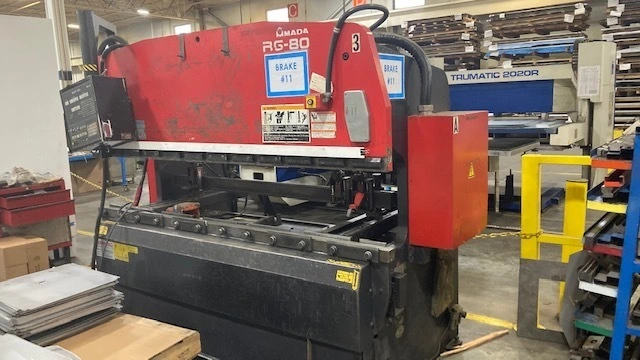

Nominal Rated Capacity 80 Ton (88 Ton Metric)
Maximum Bending Length 98.6"
Maximum Table Length 94.5"
Distance Between Uprights 80.7"
Throat Depth 15.75"
Length of Stroke 3.94"
Open Height 14.57"
Ram Repeatability +/- .0004"
Back Gauge Travel 19.6"
Speeds: Approach 106 Ipm
Bend 2 - 19 Ipm
Return 122 Ipm
Main Drive Motor 7.5 Hp
Amada NC-9EX II Cnc Control
Electric Foot Pedal
Manual Pulse Generator
Misc. Upper & Lower Die Clanps
