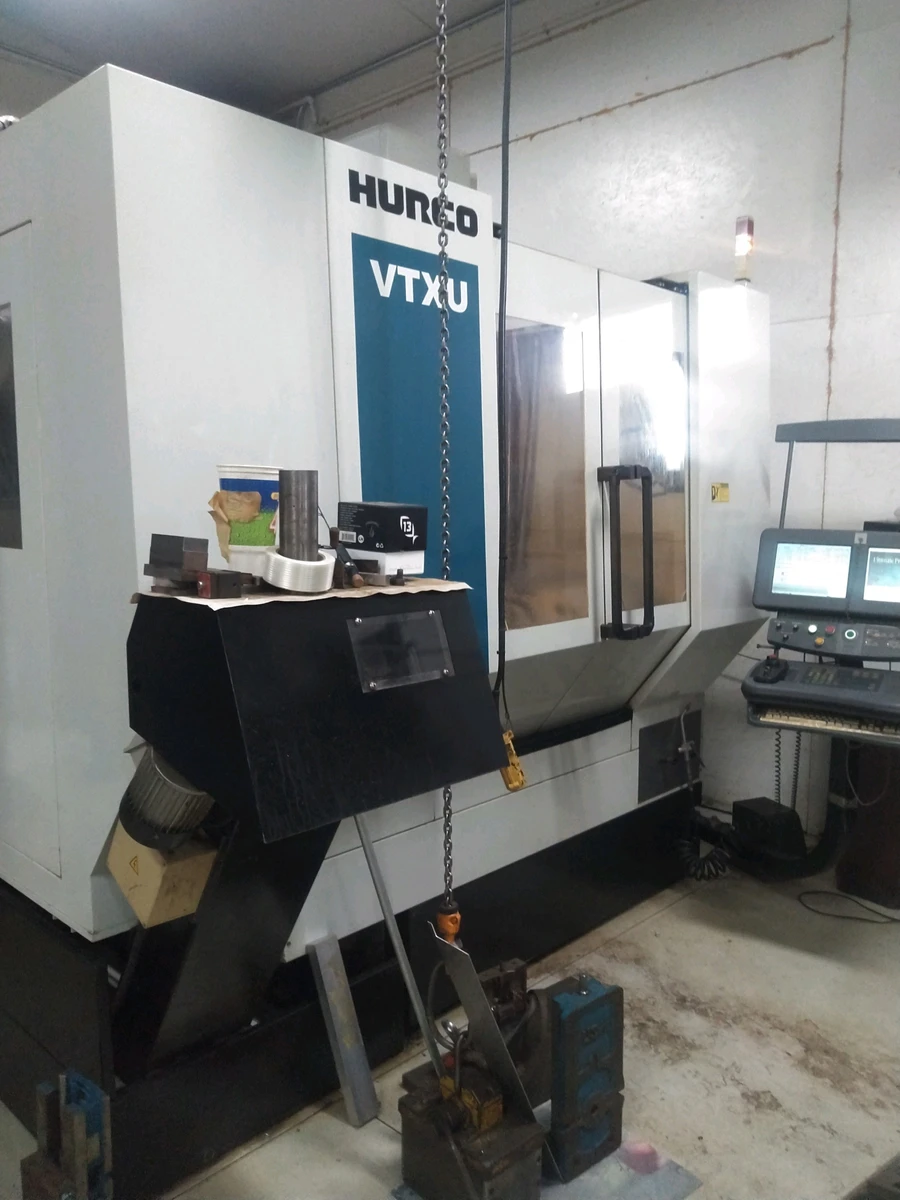

Hurco VTXU 5 Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
Hurco VTXU 5 Axis Vertical Machining Center
X Axis Travel: 31.5"
Y Axis Travel: 27.6"
Z Axis Travel: 20"
A Axis Travel: 140 +/- Deg
C Axis Travel: 360 +/- Deg
Rapid Rate X Axis: 1,378 IPM
Rapid Rate Y Axis: 1,378 IPM
Rapid Rate Z Axis: 1,378 IPM
Table Size: 23.6" x 19.7"
Max Table Load: 583 LBS
Spindle Motor: 24 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 32 ATC
Dimensions: 139.5" x 240" x 128"
Weight: 29,000 LBS
Hurco VTXU 5 Axis Vertical Machining Center
X Axis Travel: 31.5"
Y Axis Travel: 27.6"
Z Axis Travel: 20"
A Axis Travel: 140 +/- Deg
C Axis Travel: 360 +/- Deg
Rapid Rate X Axis: 1,378 IPM
Rapid Rate Y Axis: 1,378 IPM
Rapid Rate Z Axis: 1,378 IPM
Table Size: 23.6" x 19.7"
Max Table Load: 583 LBS
Spindle Motor: 24 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 32 ATC
Dimensions: 139.5" x 240" x 128"
Weight: 29,000 LBS
Imperial
| X | 31.5" |
| Y | 27.5" |
| Z | 20" |
| # Axis | 5 |
| Power | 24 hp |
| RPM | 12,000 RPM |
| # ATC | 32 |
| Taper | CAT-40 |
| Control | CNC (Ultimax Split Screen CNC) |
