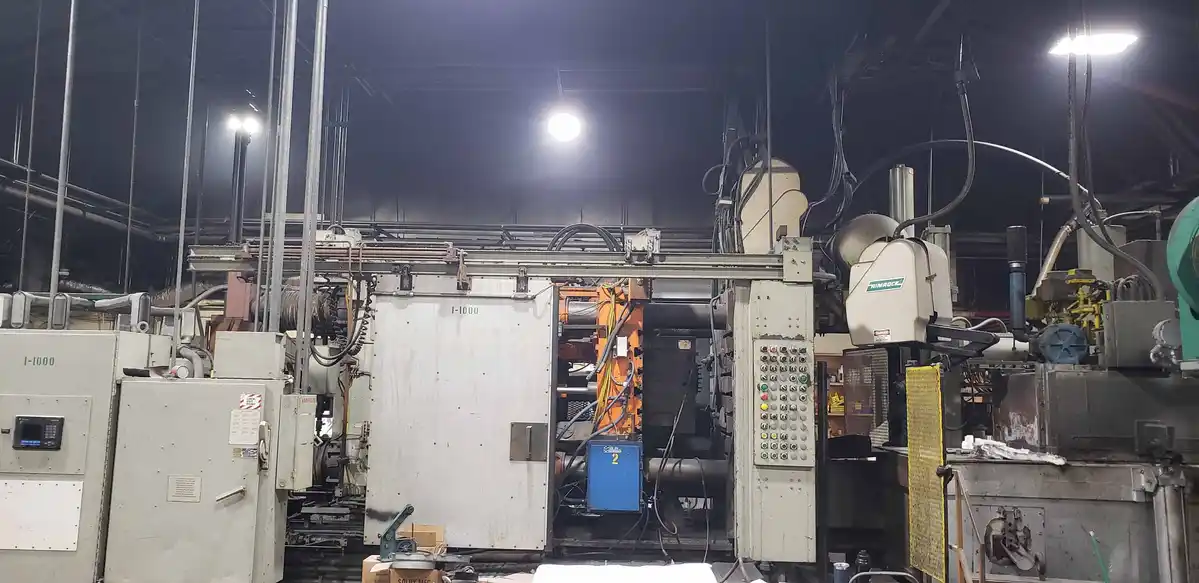

Prince Model 940 950 Ton Cold Chamber Horizontal Die Casting Machine (1991)
Have one to sell?
ConditionUsed
1 available
Retrofitted in (2013), AB PLC-5/60 with AB Panelview 600, The machine was retrofitted in (2013) the Allen-Bradley Control was saved, (2) Tie bars were replaced.
The sprayer and ladle were also rebuilt in 2013.
The melting furnace and the sprayer will go with the machine. Ladle can be acquired at extra cost.
Prince Model 940 950 Ton Cold Chamber Horizontal Die Casting Machine (1991)
Model 940
Locking Tonnage 950 Tons
Space Between Bars 40.0"
Tie Bar Diameter 8.0"
Tie Bar Centers 48.00"
Stationary Platen (Tx W X H) 15.50x64”X74"
Movable Platen (T X W X H) 13.75”X65x64"
Die Stroke 25.00"
Die Height 18.00 Min/38.00” Max
Shot Cylinder 6.5” Bore, 4.0 Rod, 24”-30" Stroke
Shot Positions 3” Below, 9” Below, 12 Below
Reservoir Capacity 475 Gallons
Hydraulic Fluid Water Glycol.
Fluid Must Be Compatible W/Buna N Seals. Seals Material Are Available Foe Testing Is Compatibility Is Uncertain
Machine Weight 120,000 Lbs
Approximate Floor Flooring 17000 Lbs. / Lev Screw Max
Lube System Lincoln Injector/ Oil
Recommended Lubrication (Type & Weight) Citgo Sliderite 220 Or Equiv.
Water Requirements 50 GPM
Electrical Power Requirements 480/230 Volts, 150/300 Amps, 3 Phases
Air Requirements 50 PSI, .5 Cfm Continuous
*Includes Requirements For Machine Lubrication, Safety Device & Plunger Lube (If So Equipped). Does Not Include Ancillary Equipment Such As Spray, Quench & Trim
Retrofitted in (2013), AB PLC-5/60 with AB Panelview 600, (The trim press is not included)
