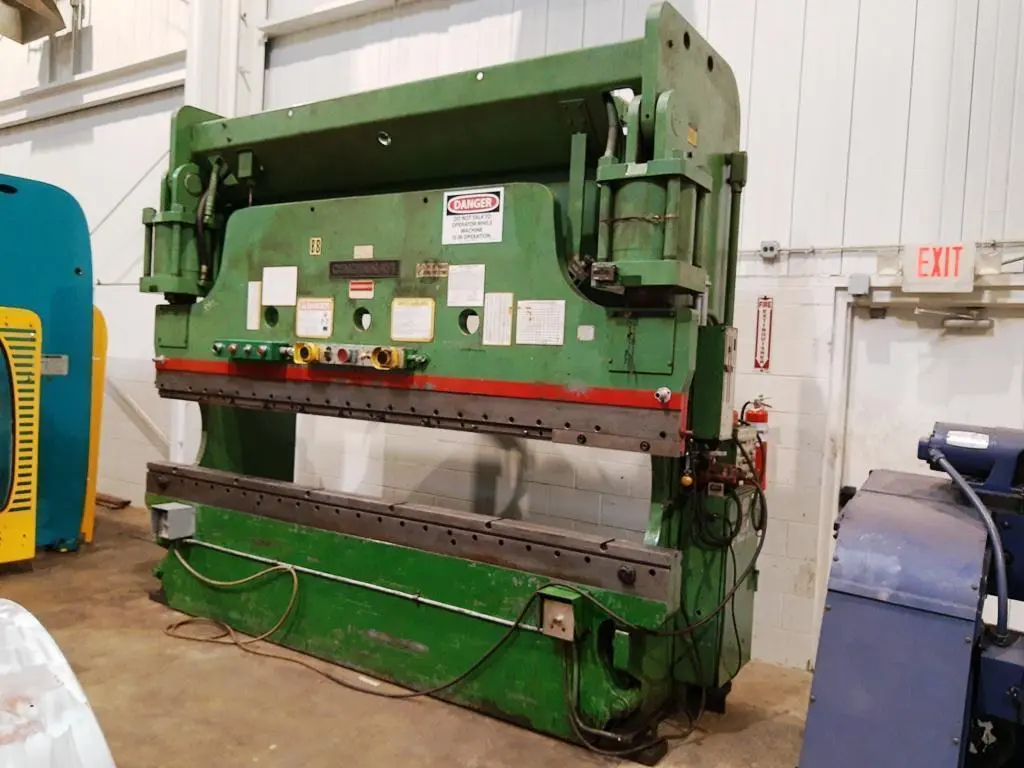

Cincinnati 230CBX10 230 Ton x 10' Ton Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
230 TON x 12' CINCINNATI 230CBx10 HYDRAULIC PRESS BRAKE
New 1978
EQUIPPED WITH
Dual Palm Buttons
Single Stroke / Inch
Adjustable Stroke Speed
Stroke Stop
Stroke Control
Removable Punching Attachment
SPECIFICATIONS
Bending Capacity 12' x 1/4"
Tonnage Capacity 230 Ton
Overall Length Of Bed & Ram 12'
Distance Between Housings 10'6"
Stroke 10"
Open Height 17"
Closed Height 7"
Throat Depth 8"
Speeds Approx
High 49 IPM
Medium 49 IPM
Low 14 IPM
Auto Return 95 IPM
Approximate Dimensions 162" x 54" x 133" H
Approximate Weight 28,500 Lbs.
230 TON x 12' CINCINNATI 230CBx10 HYDRAULIC PRESS BRAKE
Bending Capacity 12' x 1/4"
Tonnage Capacity 230 Ton
Overall Length Of Bed & Ram 12'
Distance Between Housings 10'6"
Stroke 10"
Open Height 17"
Closed Height 7"
Throat Depth 8"
Speeds Approx
High 49 IPM
Medium 49 IPM
Low 14 IPM
Auto Return 95 IPM
Approximate Dimensions 162" x 54" x 133" H
Approximate Weight 28,500 Lbs.
Dual Palm Buttons
Single Stroke / Inch
Adjustable Stroke Speed
Stroke Stop
Stroke Control
Removable Punching Attachment
