Pines #4 Horizontal Tube Bender Refurbished (2020)

6" x .250" wall (non-ferrous) round tube, 4.5" x .250" wall (stainless steel) round tube, 6" x .165" wall (mild steel) round tube, 4" schedule 80 pipe, 180 deg. maximum rotation, 20" max. centerline radius, left-hand counter clockwise rotation, 140" max. tube length over mandrel. New 1996 Refurbished (2020)

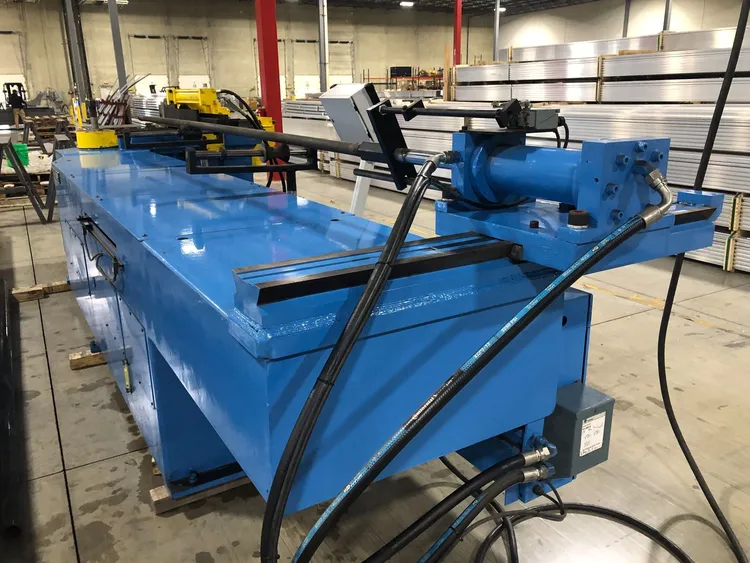

Pines #4 Horizontal tube bender

Maximum bending capacity:
Round tube (non-ferrous): 6” x .250” wall
Round tube (stainless steel): 4.5” x .250” wall
Round tube (mild steel): 6” x .165” wall
Schedule 80 pipe: 4”​

Maximum rotation: 180° + spring back
Maximum centerline radius: 20” (approx.)
Counter Clockwise Rotation (Left-Hand)
Maximum tube length over mandrel: 140" (approx.)
Includes:
AM Industrial Programmable Operator control pedestal
Allen Bradley PLC and related components
Hydraulic mandrel extractor
Automatic machine lubrication system
Refurbishment Includes:
New Touchscreen programmable control
New Encoder for accurate degree of bend
Premium prime and paint
New wiring
New hydraulic hoses
New hydraulic valves
Rebuild/Replace Pump
Replace seals and Rechrome cylinders as needed
Readjust/Remachine head slides and gib
