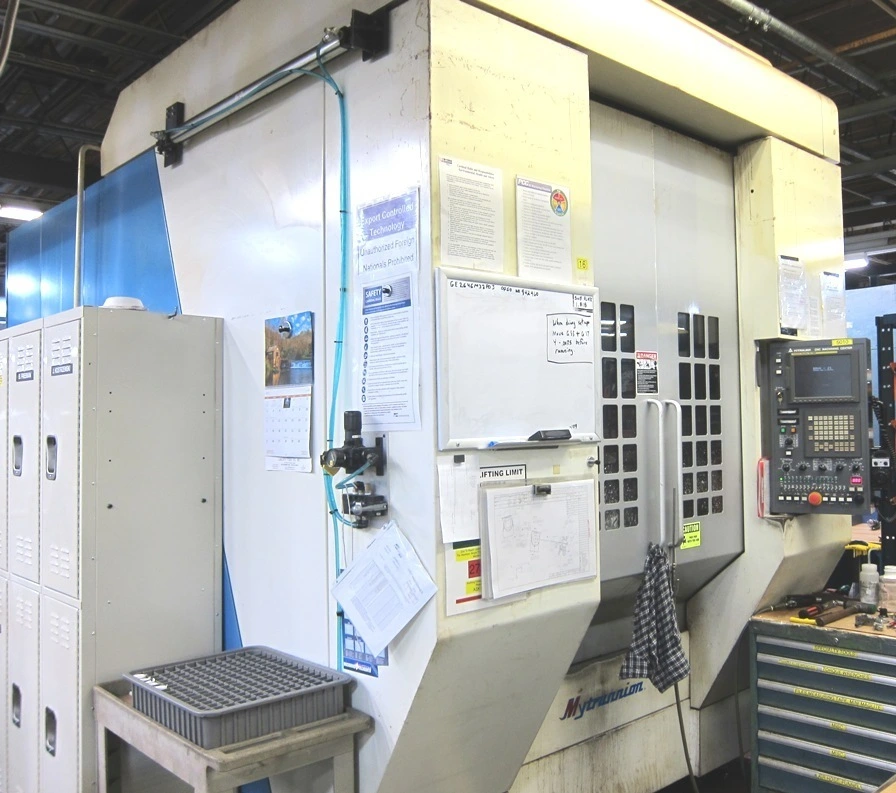

Kitamura Mytrunnion 5 Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
Kitamura Mytrunnion 5 Axis Vertical Machining Center
Table Size 24.8" x 19.7",
Max. work size 24.8" x 19.6
Distance, floor to table surface 30.9",
Table load capaity 880 Lbs,
32" X-Axis,
29.3" Y-Axis,
19.6" Z-axis
Table tilting (C-Axis) 360 Deg.,
Table Surf. to Spindle nose 3.9" - 23.6",
No. 40 Spindle taper,
20,000 rpm spindle speed,
X & Y rapid feeds
1,968 Ipm,
Z axis rapid feed
590.6 Ipm, X,Y & Z Cutting feed 24,000 mm/min,
20 Hp spindle motor,
24 Atc, A-axis table tilt 150 Deg.
Coolant thru spindle, Glass scales, Pcmcia card slot, 128 Mb memory, Spindle chiller, Spindle orientation, helical interpolation, rigid tapping, Flood coolant, chip conveyor, misc. tool holders, manual pulse generator
