CRITERION CMSL-1000 C02 Laser

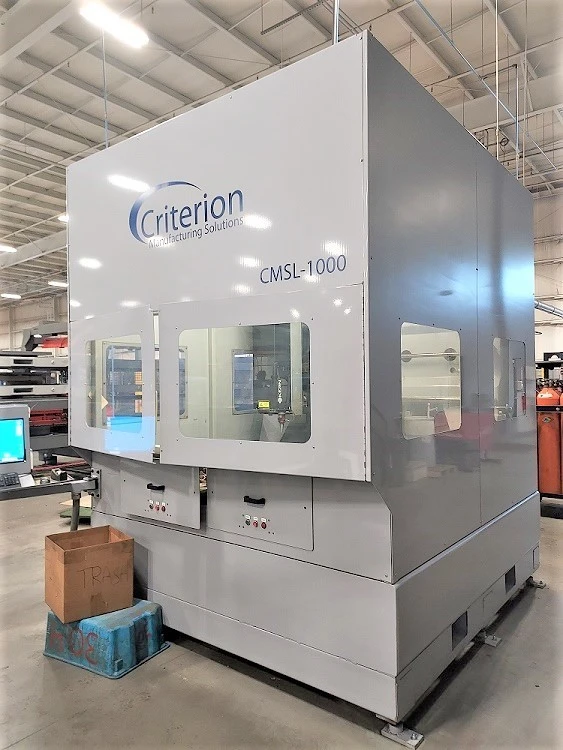

Criterion Manufacturing Solutions Model CMSL-1000 400 Watt CO2 CNC Laser System

Working Table Dimensions - 57" x 60"
Machine Features:
• Welded Steel Base Construction
• Sheet metal enclosure with Polycarbonate Windows and Front access door(s)
• Coherent E400 Laser with power supply and chiller
• INA linear ways with Ball Bearing Blocks
• Ball Screw Actuation (3 axis)
• Low Backlash inline planetary gearboxes (X and Y axis)
• Allen Bradley MP Series Servo Motors
• Allen Bradley Ultra 3000 Series Drives
• Delta Tau P-Mac Clipper Control
• Operator Interface with PC
• Provisions for Mounting production fixtures
• Provisions for fume evacuation within machine (no blower/filter included)
Machine Travels:
• 50", 50", 4"(X,Y,Z), 1500 IPM Maximum Velocity X and Y, 900 IPM Maximum Velocity Z
