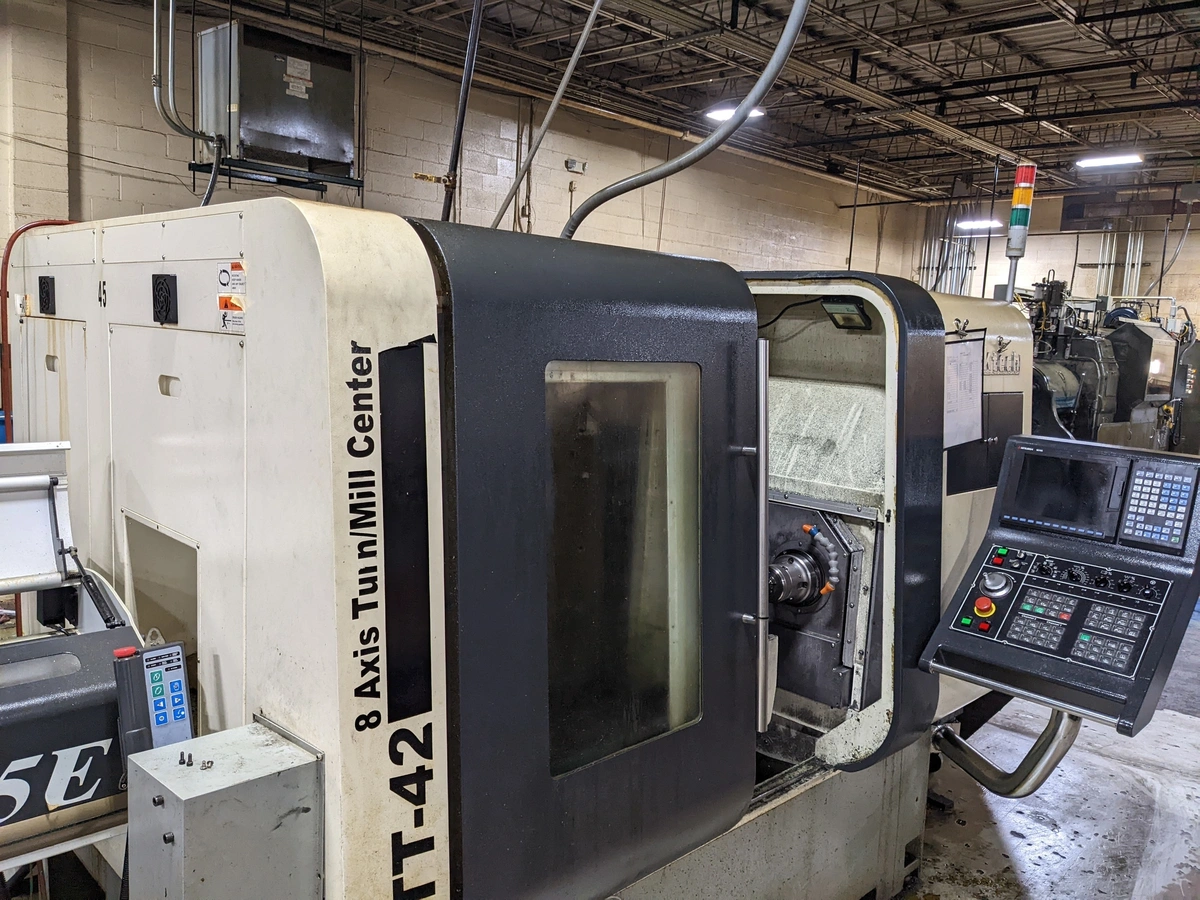

QuickTech TT-42 8 Axis CNC Lathe (2011)
Have one to sell?
ConditionUsed
1 available
8" chucks QuickTech TT-42 8 Axis CNC Lathe (2011)
Twin Spindle Live Tool, Mitsubishi M720VS CNC
Number of axes : 8
– Number of spindles : 2
– Number of turrets : 2
MAIN SPINDLE
– Spindle nose : A2-5″
– Spindle power : 7,5 [kW]
– Spindle speeds : 6.000 [rpm]
– Max. bar diameter : 42 [mm]
– Max. turning length : 230 [mm]
– C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
– Spindle nose : A2-5″
– Spindle power : 3,7 [kW]
– Spindle speeds : 6.000 [rpm]
– Max. bar diameter : 42 [mm]
– Max. turning length : 100 [mm]
– C axis indexing precision : 0,001 [°]
– Z stroke : 360 [mm]
– X stroke : 410 [mm]
TOOL BLOCK SYSTEM 1
– Number of positions : 16
– Number of motorized positions : 6
– X/Z stroke : 140 x 230 [mm]
– Y stroke : 410 [mm]
– Tool type : ER20
– Live tools speed : 4.000 [rpm]
– Live tools power : 1 [kW]
TOOL BLOCK SYSTEM 2
– Number of positions : 15
– Number of motorized positions : 6
– Y stroke : 410 [mm]
– Tool type : ER 20
– Live tools speed : 4.000 [rpm]
– Live tools power : 1 [kW]
POWER SUPPLY
– Supply voltage : 380 [V]
– Total installed power : 20 [kVA]
WEIGHT & DIMENSIONS
– Machine floor space : 3.465 x 1.654 [mm]
– Machine height : 1.896 [mm]
– Machine weight : 4.200 [kg]
Equipment
– CNC : Mitsubishi M720VS
– Interface : Ethernet / RS232 / USB / PCMCIA
– 3 colors status lamp
– Coolant tank
– Chips conveyor
– Parts catcher
– Parts conveying strip
– Bar Feeder
– Number of turning tool holders : 12
