| size | 21 X 16 | 21 X 16 |
| X Travel | 21" | 533.4 mm |
| Y Travel | 16" | 406.4 mm |
| Z Travel | 19" | 482.6 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | 40 | 40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 20" | 508 mm |
| # Axis | 5 | 5 |
| Control | CNC (Hurco Minmax) | CNC (Hurco Minmax) |

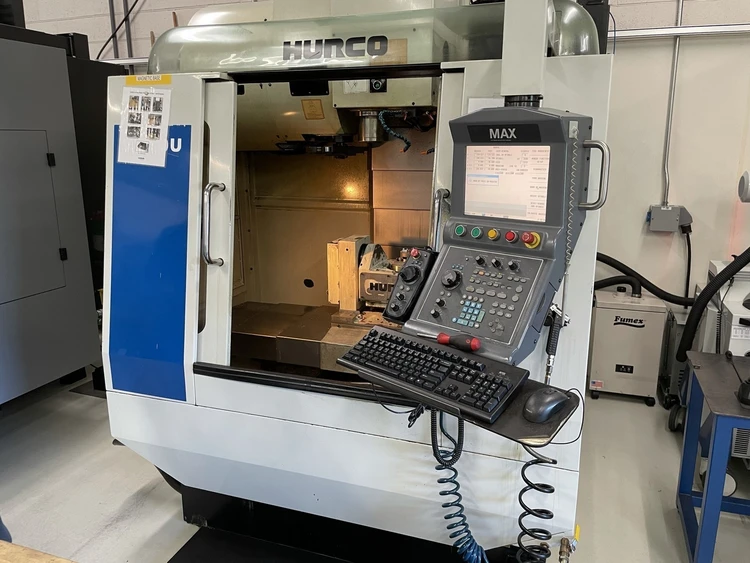

Hurco Model VM10U 5-Axis CNC Vertical Machining Center
Table Working Surface:21" x 16"
Max. Table Load: 330 Lbs.
X-Axis Travel: 21"
Y-Axis Travel: 16"
Z-Axis Travel: 19"
Spindle Speeds: 10,000 RPM
Spindle Taper: CT 40
Rapid Feeds (X,Y,Z): 945 IPM
Tool Capacity: 20 Position
Main Motor Drive: 10 HP
Dimensions: 118" X 105" X 105"
Weight: 7392 Lbs.
Equipped with:
Hurco WinMax CNC Control
Full 5-Axis Rotary/Trunnion Style Table
Hurco WinMax CNC Control
Full 5-Axis Rotary/Trunnion Style Table
