Used 1997 OKUMA LU15M CNC LATHE | Lathes CNC

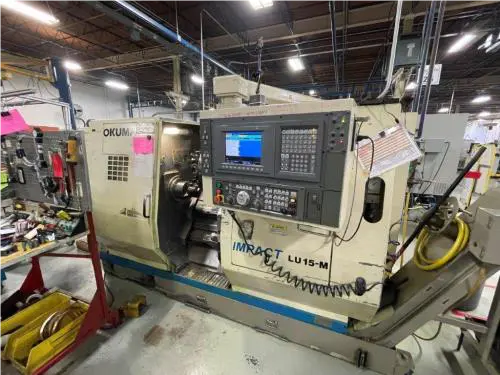

Okuma Model LU-15M Twin Turret Live Milling CNC Lathe
X-AXIS: (UPPER/LOWER) 10.24"/5.51"
Z-AXIS: (UPPER/LOWER) 25.20"/24.21"
SWING OVER BED 20.87"
SWING OVER CARRIAGE 14.96"
SWING OVER CROSS SLIDE 12.99"
MAXIMUM TURNING DIAMETER 10.62"
MAXIMUM TURNING LENGTH 23.62"
TURRET POSITIONS 12 UPPER/ 8 LOWER
HEADSTOCK & MAIN SPDL NOSE JIS-A2-6
SPINDLE BORE DIAMETER 2.44"
SPINDLE SPEED RANGE TO 4500 RPM
X-AXIS RAPID TRAVERSE SPEED 590 IPM
Z-AXIS RAPID TRAVERSE SPEED 787 IPM
X-AXIS CUT FDRATES (IPR) 0.0001"-40000
Z-AXIS CUT FDRATES (IPR) 0.0001"-40000
FLOOR SPACE REQ 156" X 83" X 76"
WEIGHT APPROXIMATELY 12000 LBS
Equipped with:
OSP 7000L CNC CONTROL
LIVE MILLING ON UPPER TURRET
CHIP CONVEYOR
8" CHUCK
