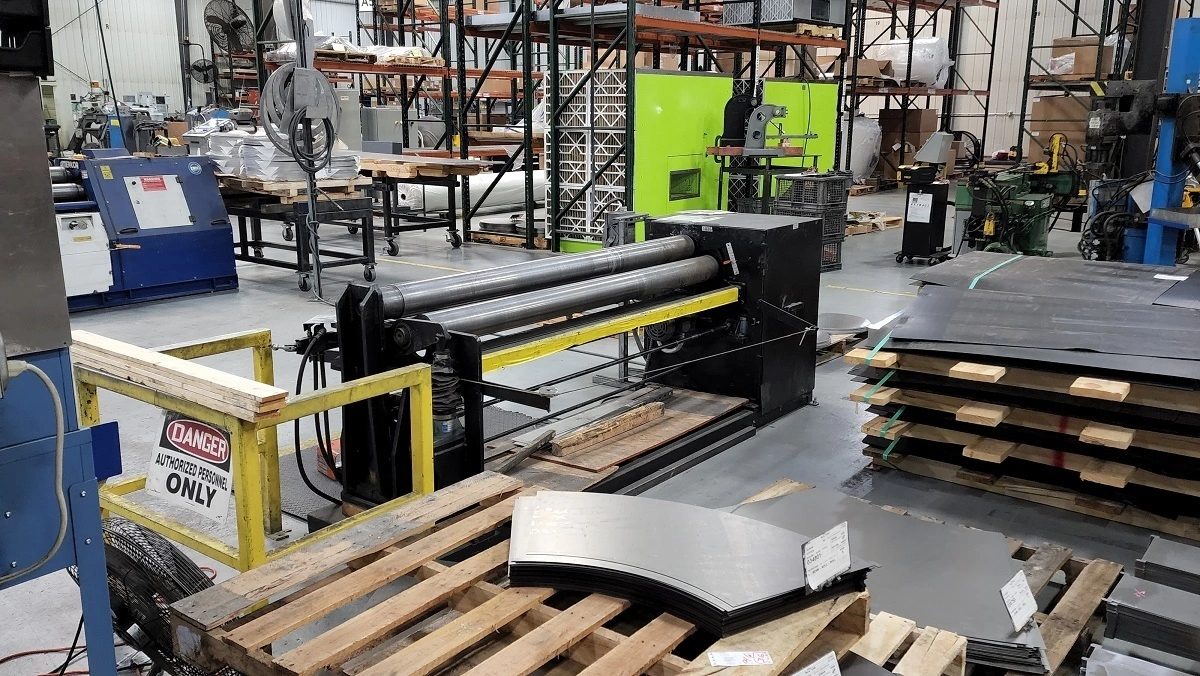

6' x 12 Ga. New Dimension Built-Rite Initial Pinch Type Power Roll
Have one to sell?
ConditionUsed
1 available
5" Roll dia
6' x 12 Ga. New Dimension Built-Rite Initial Pinch Type Power Roll
Specifications:
Capacity 6' x 12 Ga.
Roll Diameter 5"
Motor 3 Hp
Working Area 74"
Standard Pinch Roll Opening 1/2"
Working Height 34"
Surface Feet Per Minute: 18
Working Areas Between Bearings: 74″
Standard Pinch Roll Openings: 1/2″
Work Height: 34″
Overall Height: 44″
Floor Space 26" x 108"
Weight, Approx. 2,840 Lbs.
Air Operated Open End
Longitudinal Grooves on forming and pinch rolls
Power Adjust on forming roll
Automatic top roll lift
All rolls are powered
