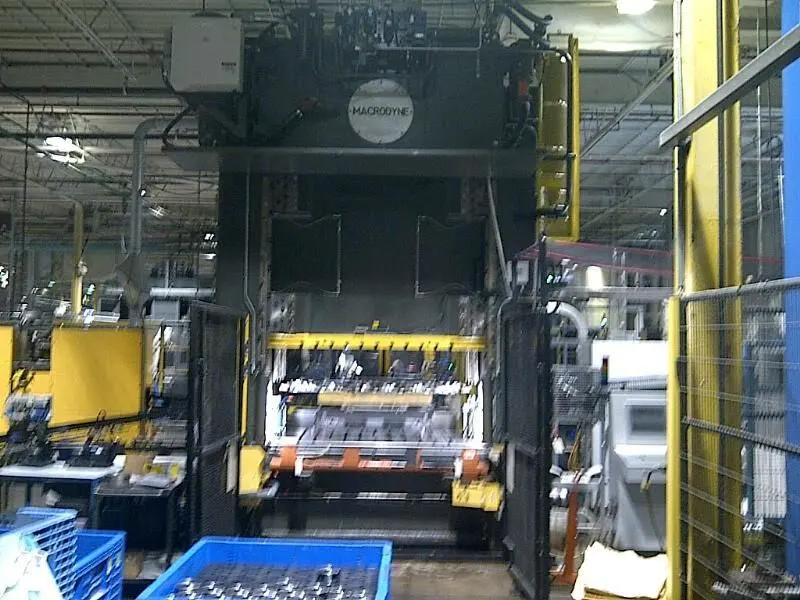

450 ton Macrodyne Press Type MPT Hydraulic Transfer Press (2017)

Macrodyne Press 450 Ton Type MPT Hydraulic Transfer Press in accordance to Tech Spec S2144144/4

Maximum pressing force
450 tons

Maximum stripping force
45 tons

Maximum net lifting force
5 tons

Usable bolster size (L-R x F-B)
90" x 36"

Usable slide size (L-R x F-B)
90" x 36"

Distance between tension members (L-R)
91"

Distance between tension members (F-B)
24"

Daylight
36"

Shut height
24"

Stroke
12"

Width of press (L-R)
127"

Depth of press (F-B)
57"

Height of top of bed above floor
42"

Height of press (approx)
16'-11"

Weight of press (approx.)
100,000 lbs.
Speeds

Fast approach speed
800 in./min.
Pre-pressing speed to 50 tons
75 in./min.
Pressing speed
3 - 25 in./min.
Fast return speed
800 in./min.
The following speeds provide a cycle time for the press and transfer of approximately 12 seconds or 5.0 spm based on the following working stroke excluding the times for both dwell and press loading/unloading time.
Fast approach speed - 8.5" @ 800 in./min.
0.64seconds
Pre-pressing speed - 3.0" @ 75 in./min.
2.40 seconds
Pressing speed - 0.5" @ 25 in./min.
1.20 seconds
Fast return speed - 12" @ 800 in./min.
0.90 seconds
Acceleration, deceleration, compression,

decompression, PLC scan & valving time, etc.
1.16 seconds
Press cycle time
6.30 seconds
Transfer time
5.70 seconds
Total press and transfer time
12.00 seconds
System Pressure

Hydraulic system operating pressure
315 bar
Installed Power

Primary pumping arrangement
1 @ 100 HP
Cooling, filtratio
