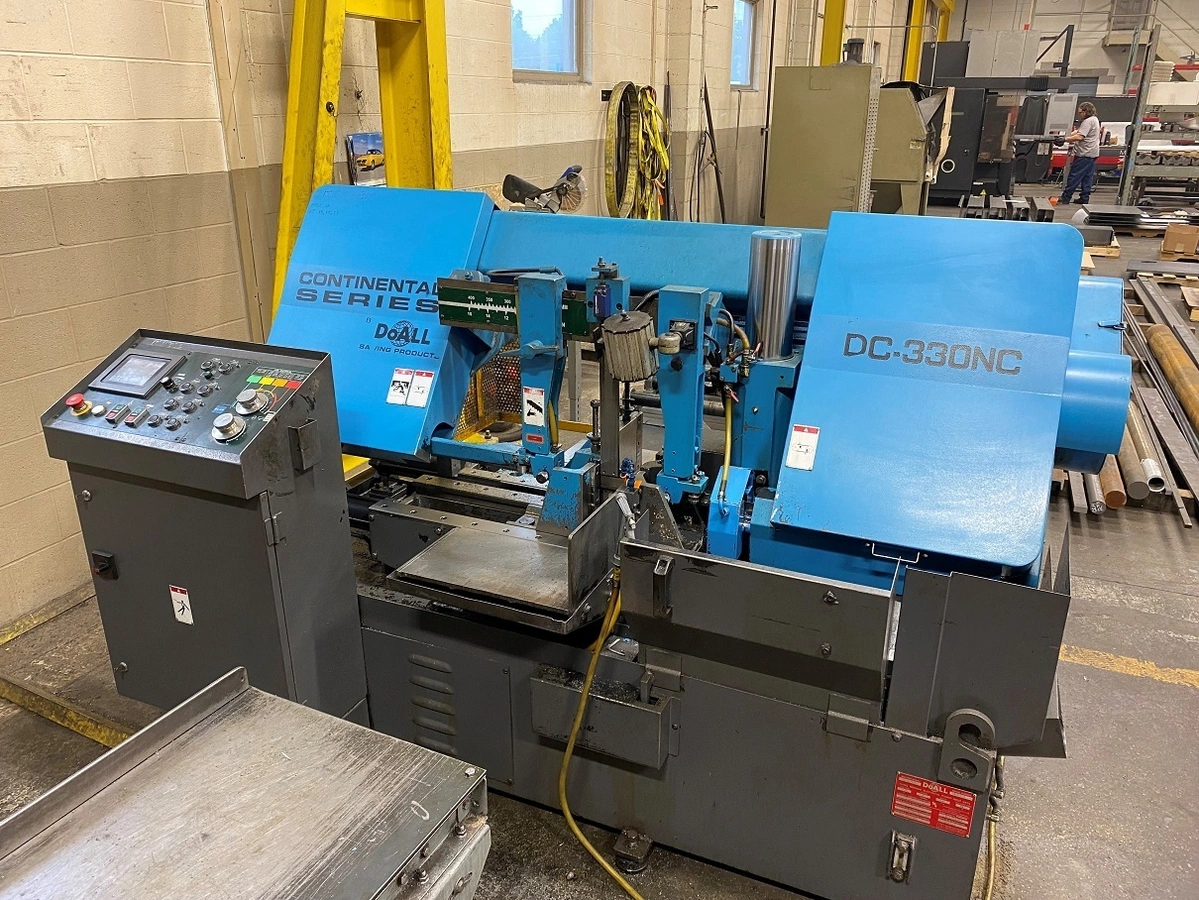

DoALL DC-330NC Horizontal Band Saw (2014)

15.75" x 13" DoALL DC-330NC Horizontal Band Saw (2014)

* Excellent Condition *
Specifications and Equipment
Capacity round: 13"
Cutting capacity rectangle: 15-3/4 x 13 (400 x 330 mm)
Bundle capacity max: 14-1/2 x 6-5/8 (370 x 170mm)
Bundle capacity min: 6-1/2 x 2 (165 x 170mm)
Saw blade: 1-1/4 x 0.042 x 167? (34 x 1.1 x 4242mm)
Blade speed: 52-275 fpm (16-85mpm)
Main Motor Drive: 5 hp (3.75 kw)
Hydraulic pump:: 1 hp (.75 kw)
Hydraulic tank capacity:: 16 gal. (60 lit)
Features:
PLC control for all electric and hydraulic functions " Infinitely
variable speed controlled by VFD " Hydraulic retractable shuttle vise
material indexer " Rapid and creep speed index vise control " Multi-step
full stroke vises with split front vise and variable vise pressure
control " Nesting fixture for bundle cutting " Spring loaded, zero
clearance, coolant through, carbide faced saw guide with lead-in
rollers " Power driven, coolant flushed, blade cleaning wire brush "
tension " Automatic chip conveyor " Blade breakage/stall motion detector
shut off switch " Band door interlocks " Work light " , 6.5 ft
(2 m) gravity conveyor " Tool kit " One DoALL
bi-metal saw blade " Instruction and parts manuals on CD or USB data
stick " Complimentary DoALLr cutting fluids package
