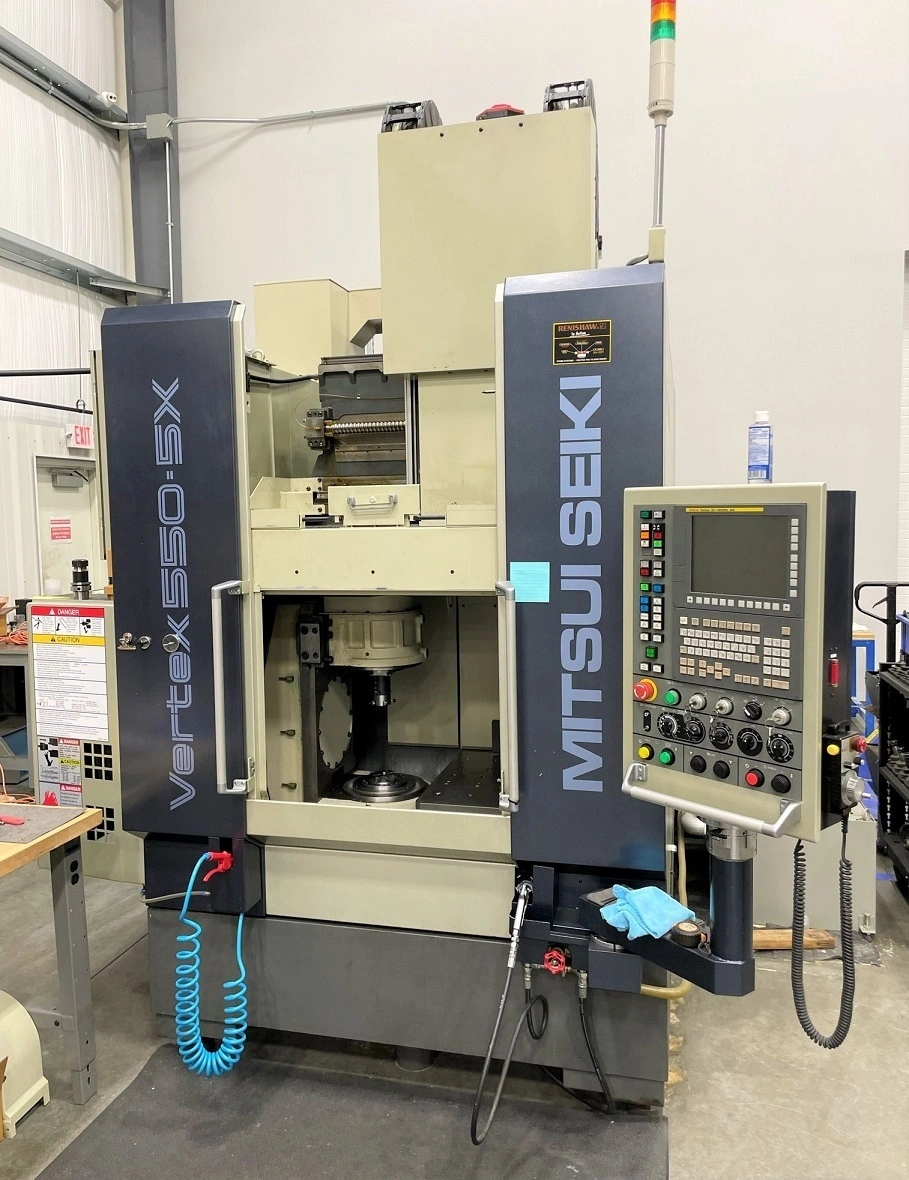

MITSUI SEIKI Vertex 550-5X Trunnion Vertical Machining Center
Specifications:
Travels: X-axis 21.7"
Y-Axis 23.6"
Z-Axis 17.7"
Spindle Center to Table Center 3.94" - 21.6"
Tilt: A-Axis +15 to -105 Degrees
C-Axis, Rotary Table 360 Degree, .001
Pallet Working Surface 15.75"
Table Max. Load 770 Lbs.
Rapid Traverse Feed Rate, X & Y 1900 Ipm
A-Axis, Tilt Feed Rate 30 Rpm
C-Axis, Rotary Rate 50 Rpm
Cutting Feed Rate:X,Y & Z Axis .004 - 1900 Ipm
Spindle Speeds Up to 15,000 Rpm
Tool Changer Capacity 40 Tools
Spindle Taper #40
