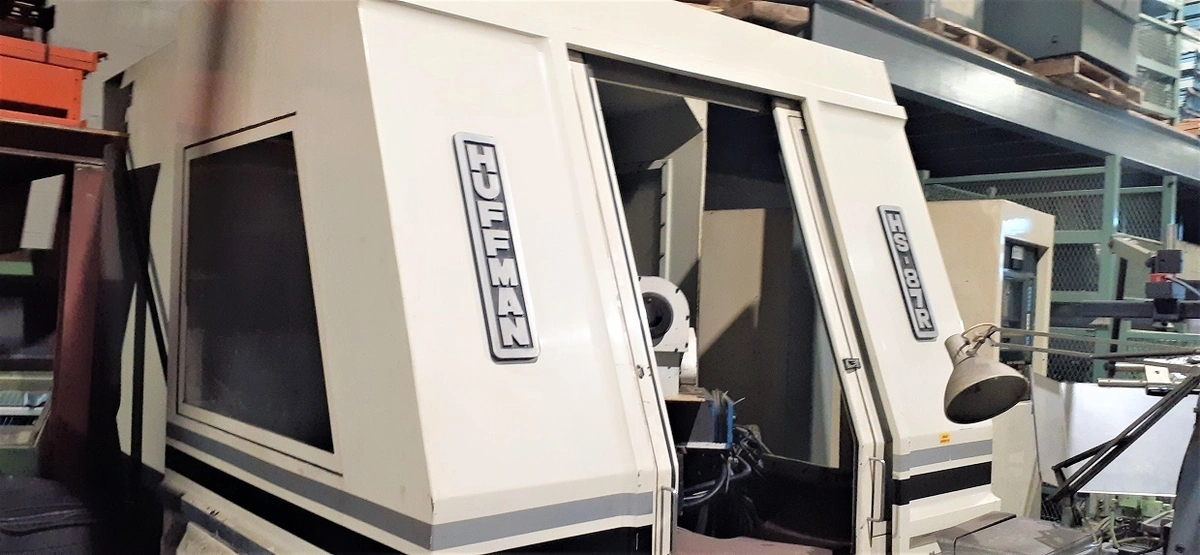

Huffman HS-87R CNC 5 Axis Tool & Cutter Grinder

Huffman HS-87R CNC 5 Axis Tool & Cutter Grinder
Capacity (with Standard Tooling):
End Mill Shank Diameter (Max.) 2-1/2"
End Mill Shank Diameter (Min.) 1/4"
Grinding Radius (Max.) 5"
Flute Length (Max.) 16"
Flute Length with Ball Nose (Max.) 6"
Overall Length of Tool (Max.) 20"
Moving the Cutter:
'A' Rotary Axis (Work Spindle) 360 Degrees
'C' Rotary Axis (Rotary Table) 180 Degres
'X' Slide (Main Base Slide) 24"
'U' Slide (Saddle) 12"
'V' Slide (Table) 7
Wheelhead:
'Y' Vertical Movement 18"
'Z' Horizontal Movement 18"
Wheel Spindle Speed 6000 RPM
Variable Speed 1200M
Standard GrindingWheel 6"
Grinding Wheel Size Range 6- 12"
Spindle Motor 10HP
Equipped With
Fanuc 15M CNC
