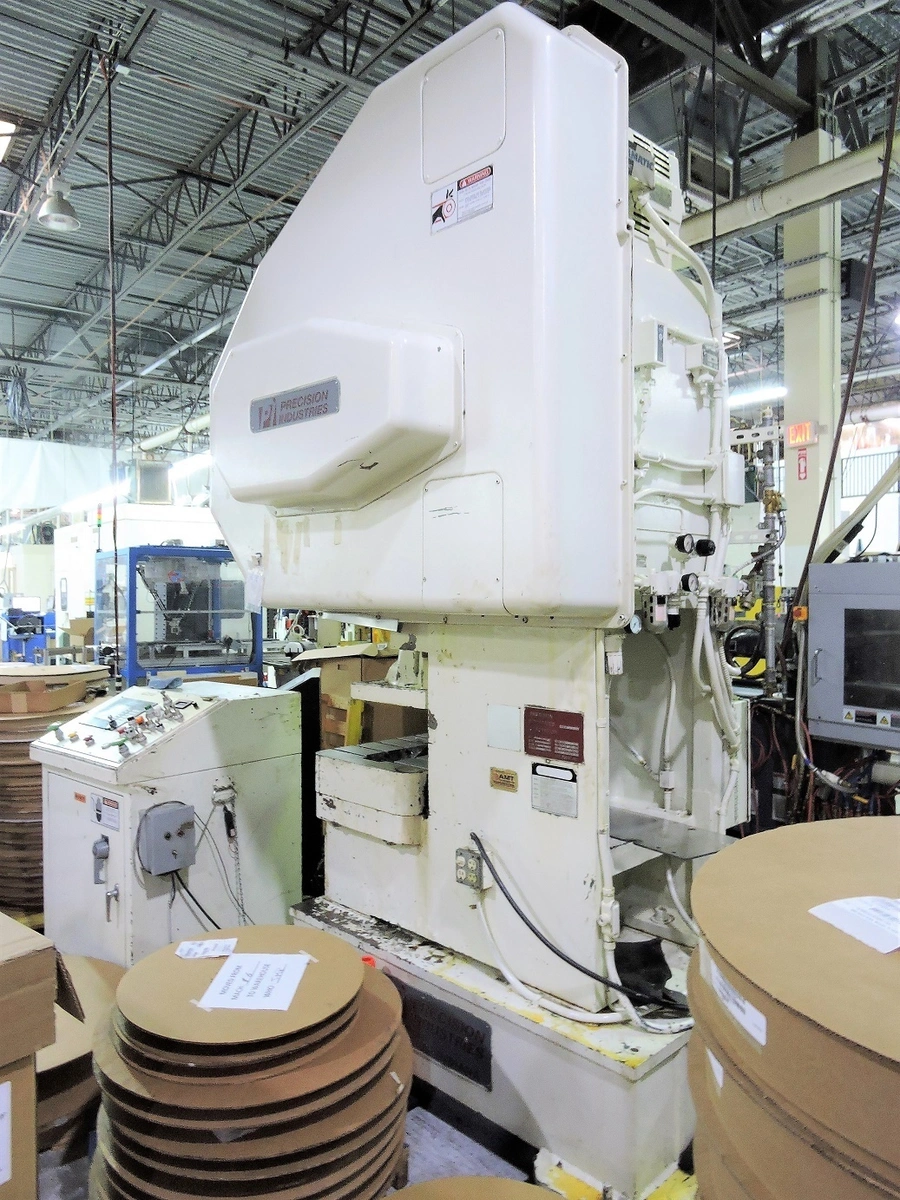

60 Ton Precision Industries Model 60 NGPHS OBS Punch Press (2000)

60 Ton Precision Ind. Punch Press, Model 60 PHS, Type Obs, High
Precision, High Speed Gap
Specifications:
Capacity 60 Ton
Stroke 2"
Speed 100 - 450 Spm
Shut Height, S.D.A.U. 14"
Adjustment of Slide 2.5"
Slide Area 21" LR x 16" FB
Slide Hole 2" Dia x 3.5" Deep
Bed Area 32" x 21"
Opening Thru the Bed 7" x 12"
Opening Thru the Frame 13-1/2"
Throat Depth 11.5"
Motor 10 Hp 440/3/60
wEIGHT, aPPROX. 12,500 lBS.
Equipped WITH:
Omnilink controls
2-7/8" Bolster Plate
Central Lube
Flywheel Guards
Electrical/Pneumatic Controls
Floor Standing control console
