( SOLD) 49" x 196" SMTCL (Shenyang) Model HTC125490A 2 Axis Flat Bed CNC Lathe (2008)

SMTCL Model HTC125490A 49" x 196" 2 Axis Flat Bed CNC Lathe
Swing Over Bed: 49"
Max Cutting Length: 192.9"
Distace Between Centers: 196.8"
Max Swing Over Cross Slide: 32.2"
Maximum Cutting Diameter:: 49.2"
Type Of Spindle Nose: A2-15
Inner Taper Of Spindle Nose: Metric 140
Spindle Bore: 5.1"
Spindle Speeds: 5-500 RPM
Main Motor Drive: 22/26 HP
X Travel: 24.8"
Z Axis Travel: 196.8"
Tailstock Taper: MT6
Turret Positions: 8
Capacity Between Centers: 10000 Lbs without Steady Rest
Equipped With

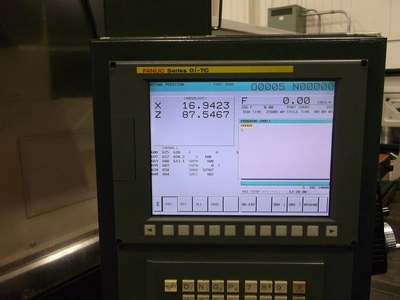

Fanuc 0iTC CNC
(2)Steady Rests
Chip Conveyor
25" 3-Jaw Manual Chuck
25" 4-Jaw Manual Chuck
