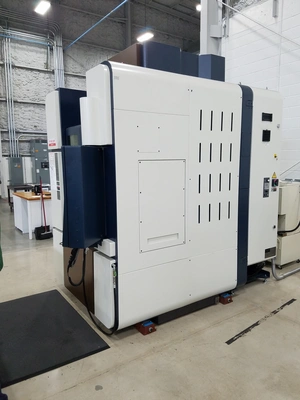

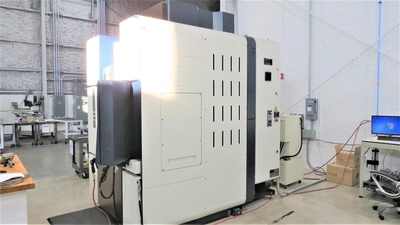

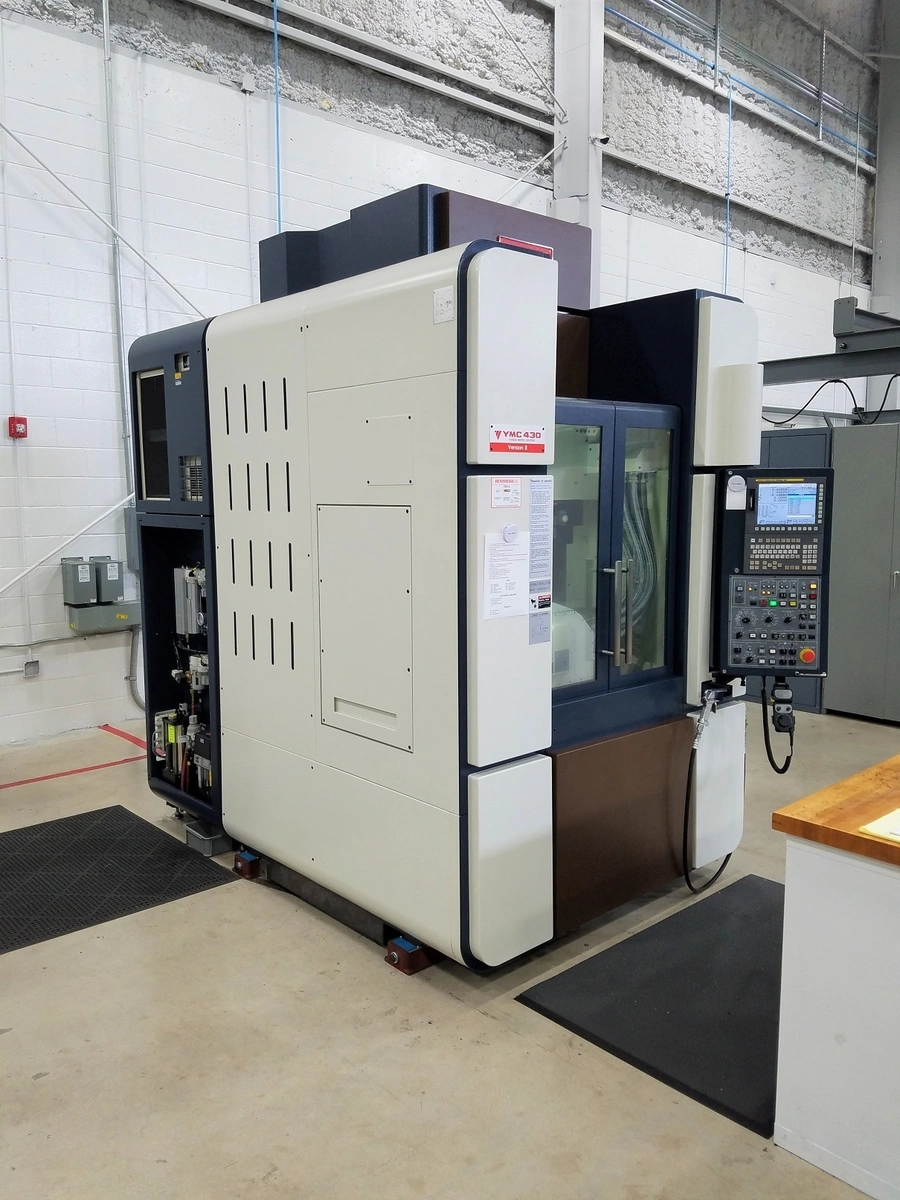

Yasda Model YMC430 Micro Center 5 Axis 16.5" x 11.8" x 9.8" High Speed Machining Center (2017)

Yasda Model YMC430 Micro Center 5 Axis High Speed Machining Center
5 Axis, 40000 RPM, Renishaw Probe, 60 ATC, Fanuc 31i CNC Control
Specifications (Preliminary)
X Axis Travel: 16.5"
Y Axis Travel: 11.8"
Z Axis Travel: 9.8"
C Axis Travel: 360 deg
B Axis Table Rotation: +-110 deg
Taper: HSKE32
Rapid traverse rate (X,Y,Zaxis) : 787.4 IPM
Feedrate (B axis) : 20min-WORM GEAR
Feedrate (C axis): 100min-1MOTOR
Feedrate (X,Y,Zaxis): 12000mm/min
Table working surface: 16"
Table loading capacity: 200kg(200Nm)
Spindle Speeds: 40000 RPM
Main motor Drive: 10HP
Tool Dia: 1.96"
Tool Wieght: .77lbs
Max Tool Length: 4.72"
Tool Count: 32
