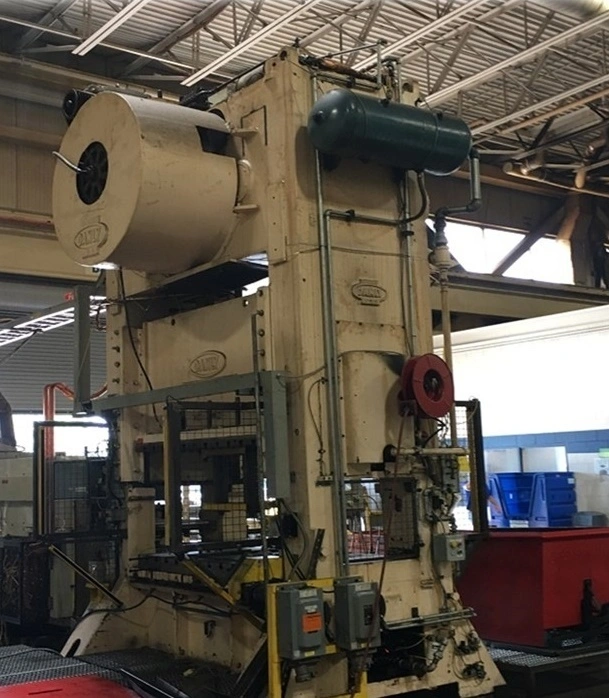

300 ton Danly Model S2-300-72-42 Straight Side Double Crank Press

Danly Model S2-300-72-42 Straight Side Double Crank Press
Nominal rated capacity: 300 Ton
Stroke of slide: 12"
Shut height (SDAU) over bed: 36"
Area of bed and ram: 72" (L to R) X 42" (F to B)
Windows: Yes
Strokes per minute: 20 - 40 SPM
Ram Adjustment: 6"
Ram Area: 72" X 42"
Equipped With
Aida LFG-600R Feeder/Straightener/Reel
Coil Reel Capacity 6600 lbs 1500mm OD 508mm ID
Feeder Capacity 70-600mm width 0.5-4.5mm thickness
No. of working rolls 4 upper, 4 lower, 1 pilot
AIDA Dimensions Length-230 inches, Width-130 inches Height-111 inches
