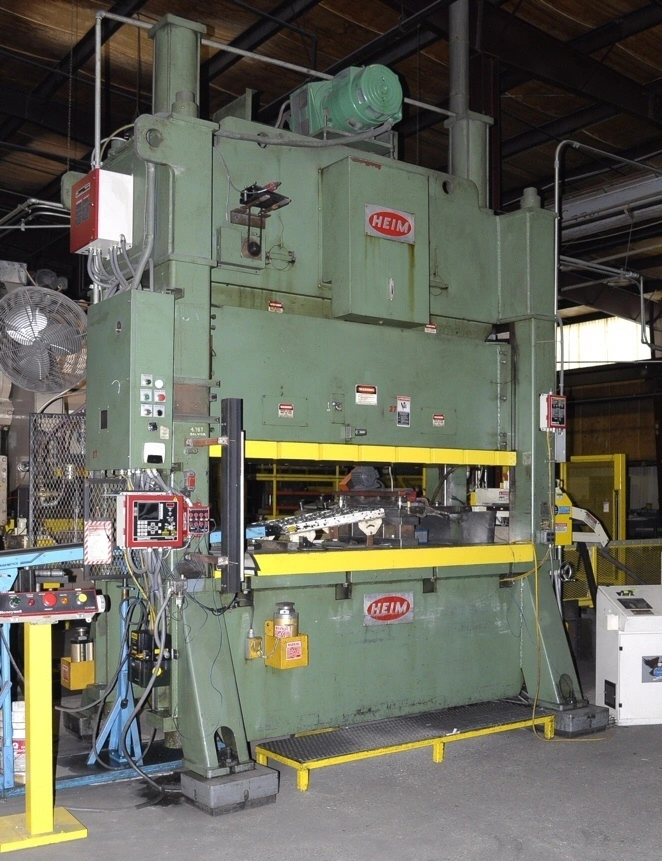

250 ton Heim Model S-250-48 X 102 Straight Side Double Crank Punch Press

250 ton Heim Model S-250-48X102 Straight Side Double Crank Punch Press
250 Ton capacity, 8" Stroke, 23" Shut height, Servo press feed, Air clutch
Specifications and Equipment
Manufacturer: Heim (The Heim Group, USA)
Model: S-250-48X102
Year of manufacture: Approx. 1990
Nominal rated capacity: 250 Tons (US)
Length of stroke: 8"
Shut height, SDAU, over bolster: 23"
Thickness of bolster: 4.75"
Area of bed: 102" (L to R) X 48" (F to B)
Area of ram: 102" (L to R) X 36" (F to B)
Strokes per minute: Variable from 20 to 40
Clutch system: Air clutch and brake
Light curtains: Shadow VI
Additional features:
Flush floor press design, 24" Wide windows, Wintriss "Smart Pac" press
controls, 18" Wide finished material out-feed conveyor, Dual air
counterbalance cylinders, Dual palm buttons
