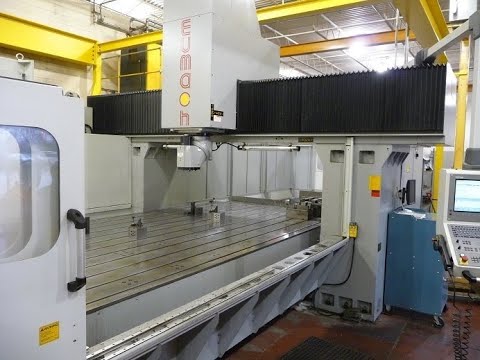

Eumach DVM-5030 5-Face CNC Double Column Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
5 Axis Bridge Type
Eumach DVM-5030 5-Face CNC Double Column Vertical Machining Center
X-Axis Travel ......................... 204.72"
Y-Axis Travel ......................... 122.04"
Z-Axis Travel ......................... 27.55"
Distance Between Columns .............. 119.29"
Distance, Spindle To Table ............ 29.21"
Table Size ............................ 196.85" x 102.36"
Table Weight Capacity ................. 57,200 Lbs.
Spindle Speeds ........................ 3500 RPM
Spindle Motor ......................... 35 HP
Spindle Taper ......................... #50
Tool Changer .......................... 180
Max. Tool Dia. ........................ 4.33"/7.87"
Max. Tool Length ...................... 13.77"
Max. Tool Weight ...................... 33 Lbs.
Approximate Weight .................... 105,600 Lbs.

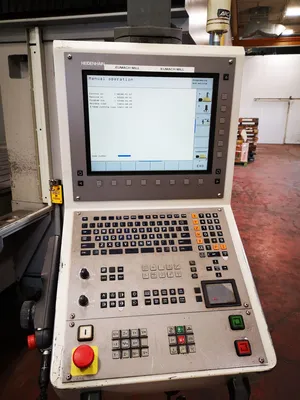

Heidenhain iTNC 530 CNC Control
B/C-Axis Auto Indexing Universal Head
180-Position Automatic Tool Changer
Manual Pulse Generator/Remote Jog Handwheel
Tool Probe
Tool Presetter
Tool Breakage Detection
Tool Load Monitor,
Through Spindle Coolant
Flood Coolant
Chip Conveyor
5 Axis Bridge Type
Imperial
| size | 204" x 122" |
| X Travel | 204" |
| Y Travel | 122" |
| Z Travel | 27.55" |
| Taper | 50 |
| Table-W | 102" |
| Table-L | 196" |
| # Axis | 5 |
| Weight | 105600 |
Eumach DVM-5030 5-Face CNC Double Column Vertical Machining Center
X-Axis Travel ......................... 204.72"
Y-Axis Travel ......................... 122.04"
Z-Axis Travel ......................... 27.55"
Distance Between Columns .............. 119.29"
Distance, Spindle To Table ............ 29.21"
Table Size ............................ 196.85" x 102.36"
Table Weight Capacity ................. 57,200 Lbs.
Spindle Speeds ........................ 3500 RPM
Spindle Motor ......................... 35 HP
Spindle Taper ......................... #50
Tool Changer .......................... 180
Max. Tool Dia. ........................ 4.33"/7.87"
Max. Tool Length ...................... 13.77"
Max. Tool Weight ...................... 33 Lbs.
Approximate Weight .................... 105,600 Lbs.
Heidenhain iTNC 530 CNC Control
B/C-Axis Auto Indexing Universal Head
180-Position Automatic Tool Changer
Manual Pulse Generator/Remote Jog Handwheel
Tool Probe
Tool Presetter
Tool Breakage Detection
Tool Load Monitor,
Through Spindle Coolant
Flood Coolant
Chip Conveyor
