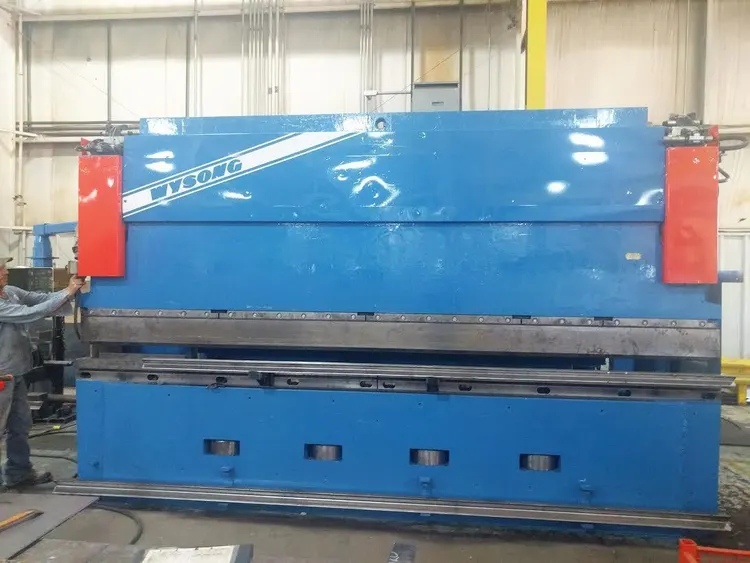

Wysong Model RT4-175X168 CNC Hydraulic Press Brake (1988)

Wysong Model RT4-175X168 175 Ton CNC Hydraulic Press Brake
Tonnage Capacity: 175 Tons
Overall Length Of Bed And Ram: 168"
Distance Between Housings: 150"
Ram Stroke: 8"
Shut Height: 10"
Die Space: 18"
Throat Depth: 12"
Speed, Approach: 236 Ipm
Speed, Press: 23 Ipm
Back Gauge Range: 39
Speed, Return: 153 Ipm
Main Drive Motor: 13 Hp A.C.
Approximate Machine Weight: 30,900 Lbs
Approximate Machine Dimensions: 173"(Lr) X 84"(Fb) X 107"(H)
Equipped With
Cybelec DNC 700 4 Axis Cnc Gauging System
2 Front Supports
Dual Palm Station Control
Foot Control
Automatic Hydraulic Bed Compensation ( Crowning )
Flush Floor Design
Hydraulic Lower Die Clamping
