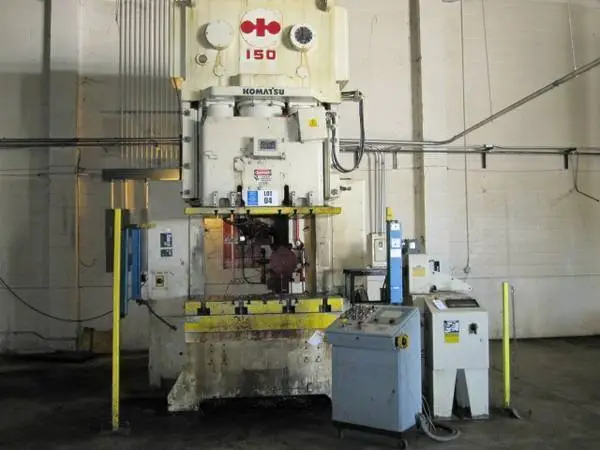

150 ton Komatsu SG2-150 Straight Side OBS Gap Frame Press (1980)

Komatsu Model SG2-150 OBS Gap Frame Striaght Side Punch Press
Nominal Tonnage: 150 Ton
Stroke (Adjustable): 12"
Shut Height: 32.55"
Bed Size: 60" LR X 30" FB
Ram Adjustment (Powered): 5"
Frame Opening in Rear: 48" x 44"
Maximum Weight of Upper Die: 4.8 Ton
Strokes Per Minute: 40 SPM
Main Motor Drive: 20 HP
Current Electrical Arrangement: 460/3/60
Equipped with:
T-Slotted Bolster
Triad Light Curtains (1980)
W/PressCam 8 "Control Reliable" Resolver Based Programmable Cam Switch
rake monitor, die protection system, multiple counters
Punch Press Automation Controller
