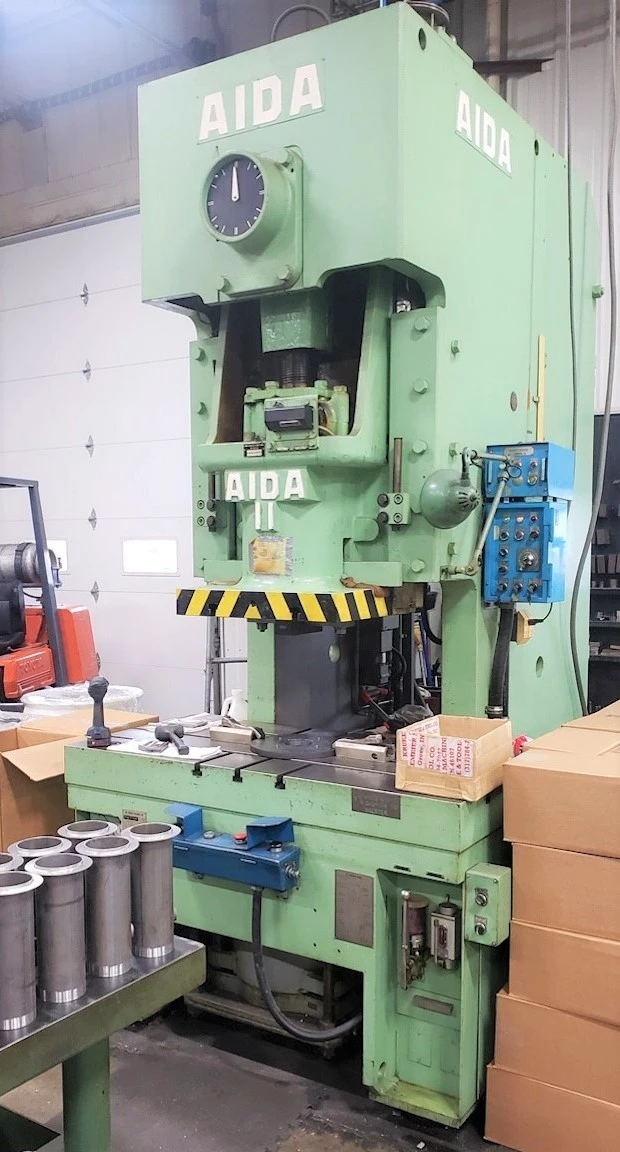

121 ton Aida C1-11 II 121 Ton Single Crank Gap Frame Press (1985)
Have one to sell?
ConditionUsed
1 available
Air Cushion, 50 SPM, 56" x 26" Bed, 7" Stroke
121 ton Aida Model C1-11 II 121 Ton Single Crank Gap Frame Press (1985)
Specifications (Preliminary)
Tonnage Capacity: 110 / 121
Bed Size: 56.2" x 26.7"
Slide Area: 23.6" x 20.4"
Shut height: 13.7"
Stroke: 7"
Adjustment: 3.5"
Strokes Per Minute: 50 SPM Variable
Main Motor Drive: 7.5 / 10 HP
Air Brake, Air Counter Balance, (Air Cushion available at extra cost)
T-Slotted bolster and ram
Manual Grease Lubrication System
Single/Inch/Continuous
Palm Button Stand
Dual Ross Air Valve
Set of Safe Lite Curtains
Overload Protector in the Slide
6 Point gibbing
