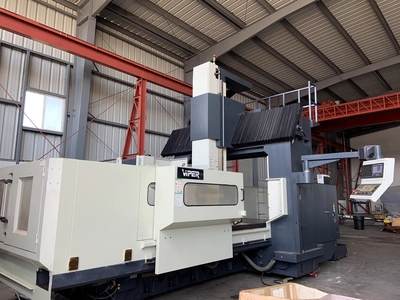

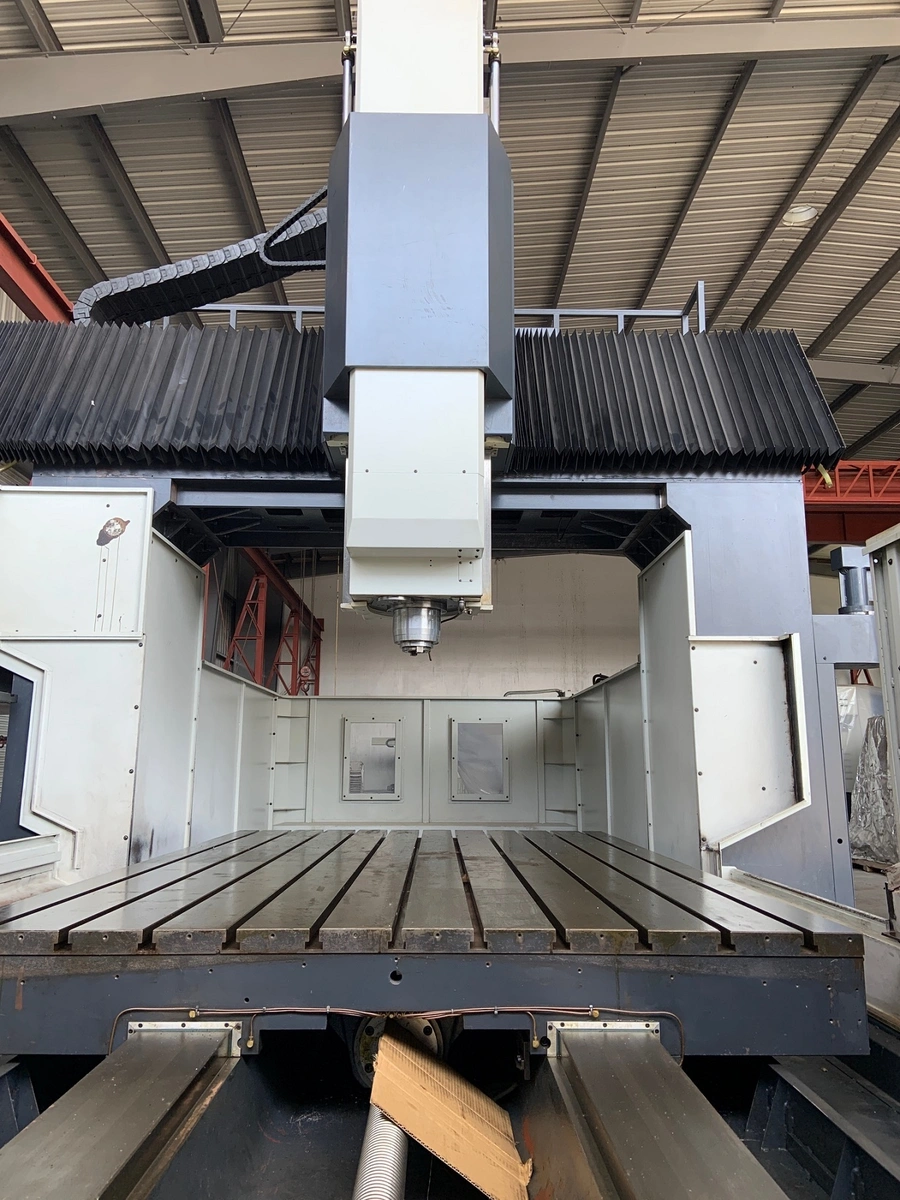

120" x 94" x 42" Mighty Viper 3240AG CNC Bridge Type Machining Center (2008)

Mighty Viper 3240AG Cnc Bridge Type Machining Center

Specifications:
Working Surface of Table 125.98" x 80.31"
Travel: X-Axis 120.08"
Y-Axis 94.49"
Z-Axis 42.13"
Maximum Table Load 24,250 Lbs.
Dist, Spindle Center to Column 16.22"
Width Between Column 98.82"
Dist, Spindle End to Table 15.35" - 57.48"
Spindle Type Gear
Spindle Speeds Up to 6,000 Rpm
Spindle Nose Taper Iso #50
Cutting Feed Rate 0.34 - 196.8 Ipm
Rapid Travers Rate X,Y,Z 393 Ipm
Tool Changer 40 Tool
Maximum Tool Weight 44 lbs.
Maximum Tool Size 5.11" x 13.78"
Tool SHank Cat #50
Spindle Drive Motor 30 Hp
Shipping Dimensions
180" x 80" x 130", 30,000 lbs, Cross Beam
350" x 160" x 120", 65,000 lbs, Base & Columns
170" x 100" x 70", 8,000 lbs, Chip Conveyors
120" x 95" x 60", 6000 lbs, Accessories (ATC, Partial Guarding, Control Pendant...)
