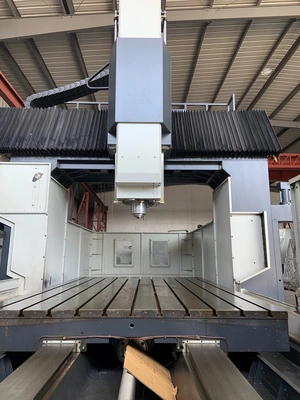

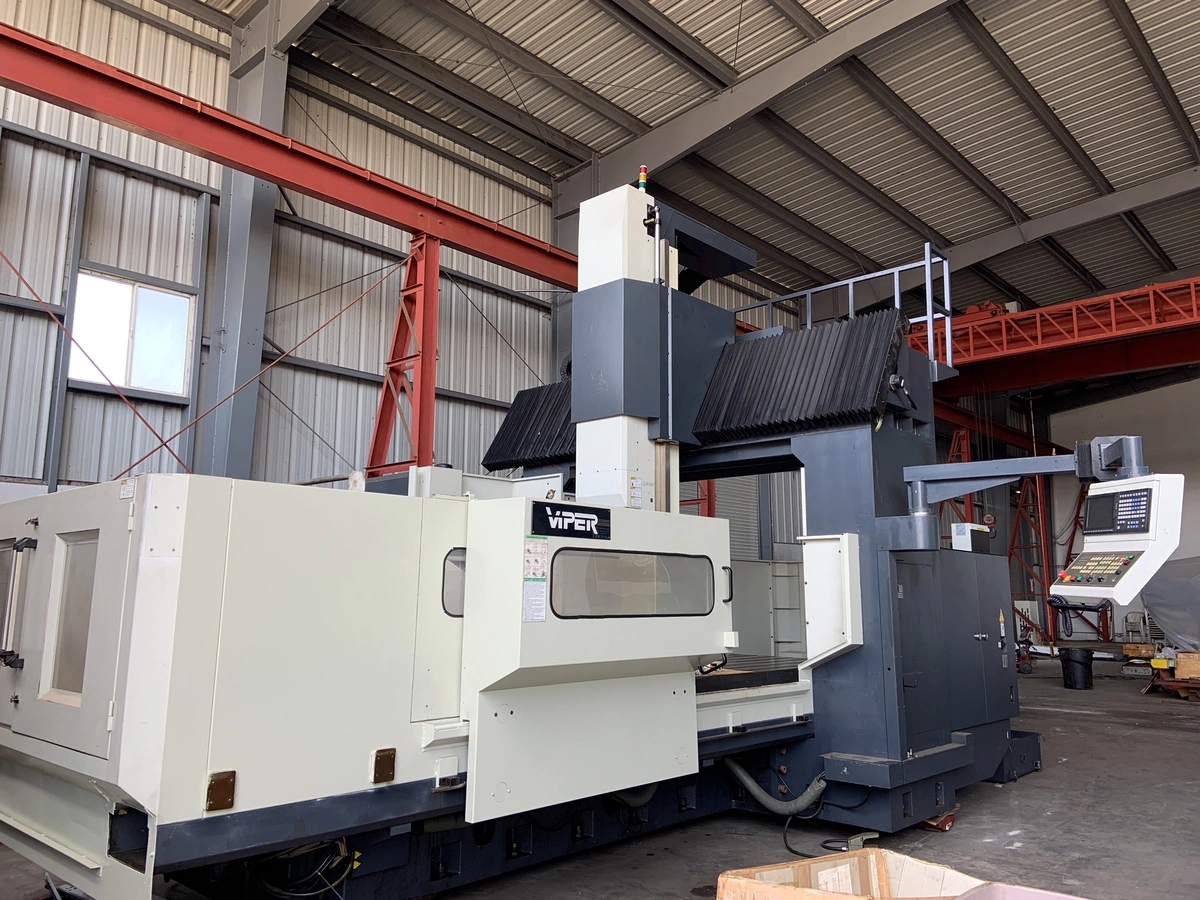

Mighty Viper DZ3240AG 120" x 94" x 42" CNC Bridge Type Machining Center (2008)

Mighty Viper Mod. VMZ-DZ-3240AG Cnc Vertical Machining Center

Specifications:
Working Surface of Table 125.98" x 80.32"
T-Slots On Table .87" w x 7.09" P
Maxx. Load On Table 24,250 Lbs.
X-Axis Table Travel 120.08"
Y-Axis Table Travel 94.49"
Z-Axis Spindle Travel 42.13"
Dist. Spindle End to Table 15.35" to 57.48"
Width Between Column 98.82"
Dist. Spindle Center to Column 16.22"
Spindle Type Geared
Spindle Speed Up to 6,000 Rpm
Spindle Taper Cat #50
Tool Changer Capacity 40 Tools
Max. Tool Weight 44 Lbs.
Max. Tool Size 5.11" x 13.78"
Tool Selection Random
Pull Stud Bolt P50T-1
Spindle Drive Motor 30 Hp
Cutting Feed Rate 0.34 - 196.81 Ipm
Rapid Traverse Feed Rate X,Y,Z 3921 Ipm
Shipping Dimensions
180" x 80" x 130", 30,000 lbs, Cross Beam
350" x 160" x 120", 65,000 lbs, Base & Columns
170" x 100" x 70", 8,000 lbs, Chip Conveyors
120" x 95" x 60", 6000 lbs, Accessories (ATC, Partial Guarding, Control Pendant...)
Price as Sold new was $469,000 -
