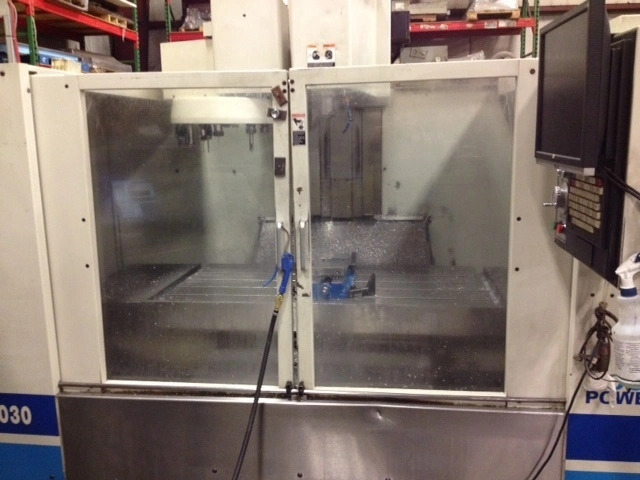

60" x 30" x 30" Fadal Model 907 VMC6030HT Vertical Machining Center (1999)

Fadal Model 907 VMC6030HT Vertical Machining Center
Wired For 5th Axis
Table Working Surface: 62.5" x 30"
Table Load Capacity: 3,500 LBS
Longitudinal Travel (X-Axis): 60"
Cross Travel (Y-Axis): 30"
Vertical Travel (Z-Axis): 28"
Feed Rates (X & Y-Axes): 0.1 to 250 IPM
Feed Rate (Z-Axis): 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes): 400 IPM
Rapid Traverse Rate (Z-Axis): 400 IPM
Tool Storage Capacity: 21
Spindle Horsepower: 22.5 HP
Spindle Speeds Range: 40-10,000 RPM
Spindle Taper: #40 Taper CAT
Electrics: 460/3/60
Approximate Machine Dimensions: 103" x 158"
Approximate Machine Height: 119"
Approximate Machine Weight: 17,500 LBS
