59" x 24" x 27" Dah Lih Model MCV1500 3 Axis Vertical Machining Center (1998)
Have one to sell?
ConditionUsed
1 available
50 Taper, 4500 RPM, 20HP, 24 ATC, Fanuc 18M CNC Control

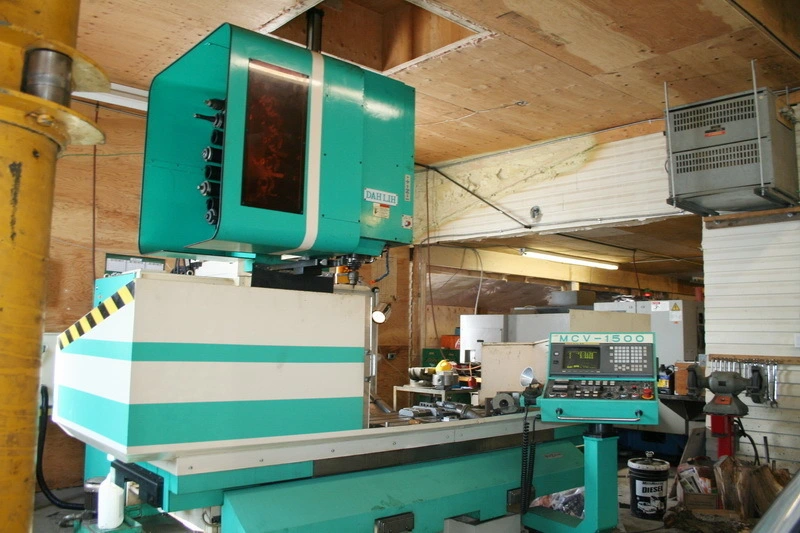

DAH LIH Model MCV1500 3 Axis Vertical Machining Center
TABLE SIZE: 26.5" x 67"
X-AXIS TABLE TRAVEL: 59"
Y-AXIS SADDLE TRAVEL: 24.8"
Z-AXIS SPINDLE HEAD TRAVEL: 27.6"
MAXIMUM DISTANCE SPINDLE TO TABLE: 35.5"
SPINDLE CENTER TO COLUMN: 28"
RAPID TRAVERSE RATE X, Y: 787 IPM
RAPID TRAVERSE RATE Z: 472 IPM
SPINDLE TAPER: CAT 50
SPINDLE SPEEDS: 4500 RPM
SPINDLE DRIVE MOTOR: 20HP
AUTOMATIC TOOL CHANGER: 24 Positions
MAXIMUM TOOL LENGTH: 13.8"
MAXIMUM TOOL WEIGHT: 33 Lbs.
FANUC 18M CONTROL
24 POSITION SIDE MOUNT TOOL CHANGER
FLOOD COOLANT
CHIP AUGER
