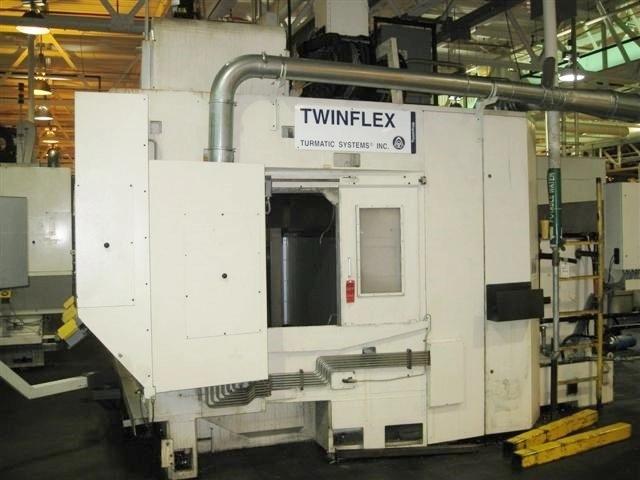

51" x 16" x 8" Twinflex Multi Spindle (2) Station 5-Axis Flexible Machining Cell (2004)

Twinflex Multi Spindle (2) Station 5-Axis Flexible Machining Cell
X-Axis Travel: 51"
Y-Axis Travel: 16"
Z-Axis Travel: 8.6"
Rapid Traverse Rates (X-Axis): 70 IPM
Rapid Traverse Rates (Y&Z-Axis): 40 IPM
Table Size: 12.5"
Planetary Table Indexing: .001 Degrees
Turret Configuration: (2) 8 Spindle Turrets
Spindle Speeds: 10,500 RPM
Chip to Chip: 1 Second
Tool Adaptation: HSK 40-63
Equipped with:
GE Fanuc 16oi MB CNC Control
Multi Spindle Turrets (2)
Automatic Toolchanger on Vertical and Horizontal Turret Units
Internal Coolant Supply
Loading and Unloading Devices
Glass Scale Direct Measuring System
Hydraulic Table Clamping
