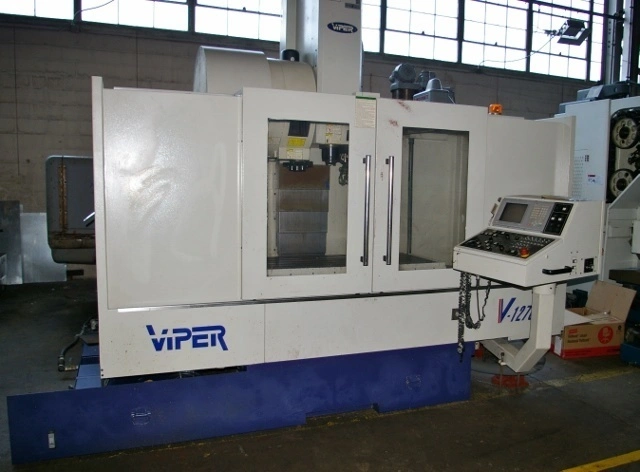

VIPER VMC1270A Machining Center
Machining Centers, VerticalMitsubishi CNC wired for 4th qnd 5th
size | 50" x 20" |
X Travel | 50" |
Y Travel | 25" |
Z Travel | 25" |
Power | 15 hp |
RPM | 8,000 RPM |
# ATC | 20 |
Taper | 40 |
Table-W | 50" |
Table-L | 25" |
# Axis | 4 |
Viper Model VMC1270A 50" x 25" x 25" Vertical Machining Center
Table Loading Capacity: 2,000 Lbs.
Longitudinal Travel: ( X Axis ) 50"
Cross Travel: ( Y Axis ) 25"
Vertical Travel Of Head: ( Z Axis ) 25"
Cutting Feed Rate: .03 To 472 Ipm
Rapid Feeds: 780 Ipm
Spindle Spededs: 8000 RPM
Taper: CAT 40
Tool Magazine Capacity: 20
Spindle Drive: 15 Hp A.C.
Box Ways
Mitsubishi Meldas Magic 64 Cnc Control
20 Atc
4th And 5th Axis Ready
Rigid Tap
Automatic Lubrication
Coolant Tank And Pump
