| size | 50" chuck | 50" chuck |
| Swing | 50" | 1,270 mm |
| Machining Length | 35" | 889 mm |
| # Axis | 2 | 2 |
| Chuck Size | 50" | 1,270 mm |
| Power | 30 hp | 22.4 kW |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |

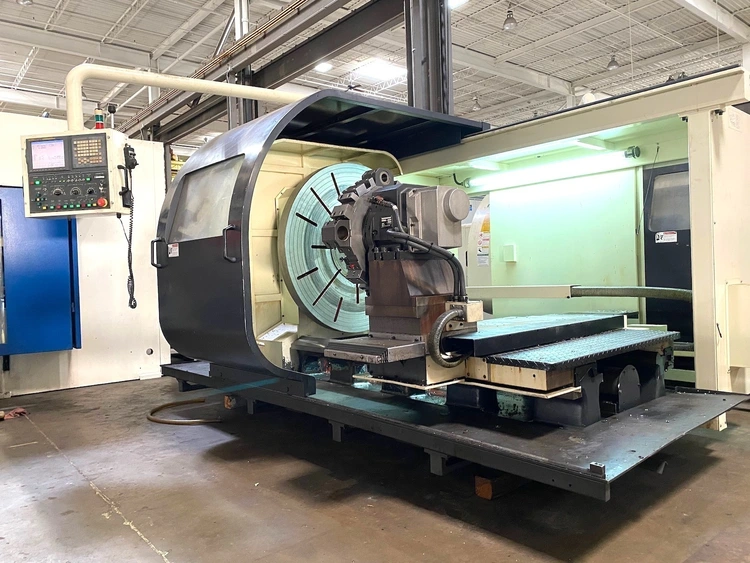

50" chuck Hwacheon Mega T130 Heavy Duty CNC Lathe (2007)
50" Chuck, Fanuc 21TB CNC Control
Specifications (Preliminary)
Swing Over Bed: 50"
Swing over Cross Slide: 35.83"
Max Cutting Diameter Over Cross Slide: 35.4"
Max Cutting Diameter Over Bed: 51"
Spindle Nose: A2-15
Spindle Speeds: 4-400 RPM
Max Stroke X / Z: 26.3" / 43.31"
Rapid Feeds: 157 / 157 IPM
Spindle Motor: 30 HP
Power Capacity: 45 Kva, 108 Amps
50" Chuck, Fanuc 21TB CNC Control
