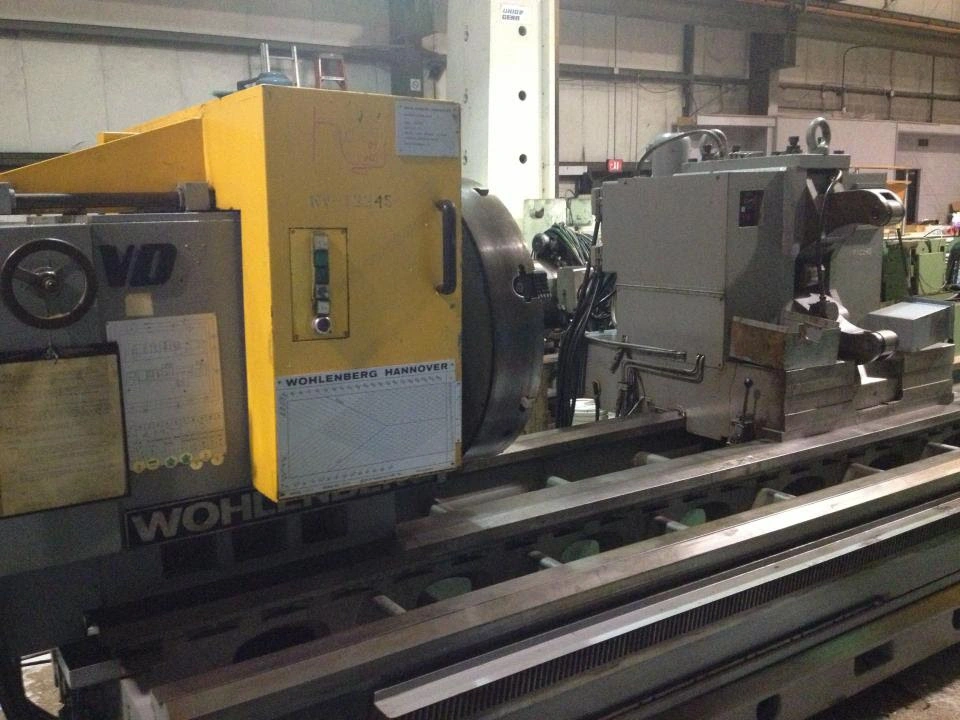

45" x 338" VDF Wohlenberg Model 1070 S CNC Flat Bed Lathe (1985)

VDF Wohlenberg Model 1070 S 45" x 338" CNC Flat Bed Lathe
From U.S. Government.Reserve, Surplus to Department of Defense
Maximum Swing over Bed: 45"
Maximum Swing over Cross Slide: 840 mm 33"
Center Distance: 8,600 mm 338"
Spindle Bore: 130 mm 5.1"
Spindle Speeds: 1.12 - 1,120 R.P.M. (2 Gear Ranges)
Main Motor Drive: 85 HP
Equipped With

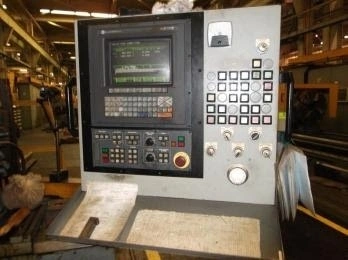

Allen Bradley Series 9 CNC Control
Updated by U.S. Government in 2000
8 Position Sauter Turret
(360 mm)14 Capacity Self Centering Turn Thru Hydraulic Steady Rest
(385 mm) 15 Capacity Rotating Work Support
3 Shear Bed, Carriage can bypass Steady Rest and Tailstock
(800 mm) 31.5 Diameter 4 Jaw Chuck
Chip Conveyor
Retrofit Pricing Available
