43" x 23" x 25" Femco-Kafo 4 Axis Vertical Machining Center (2004)

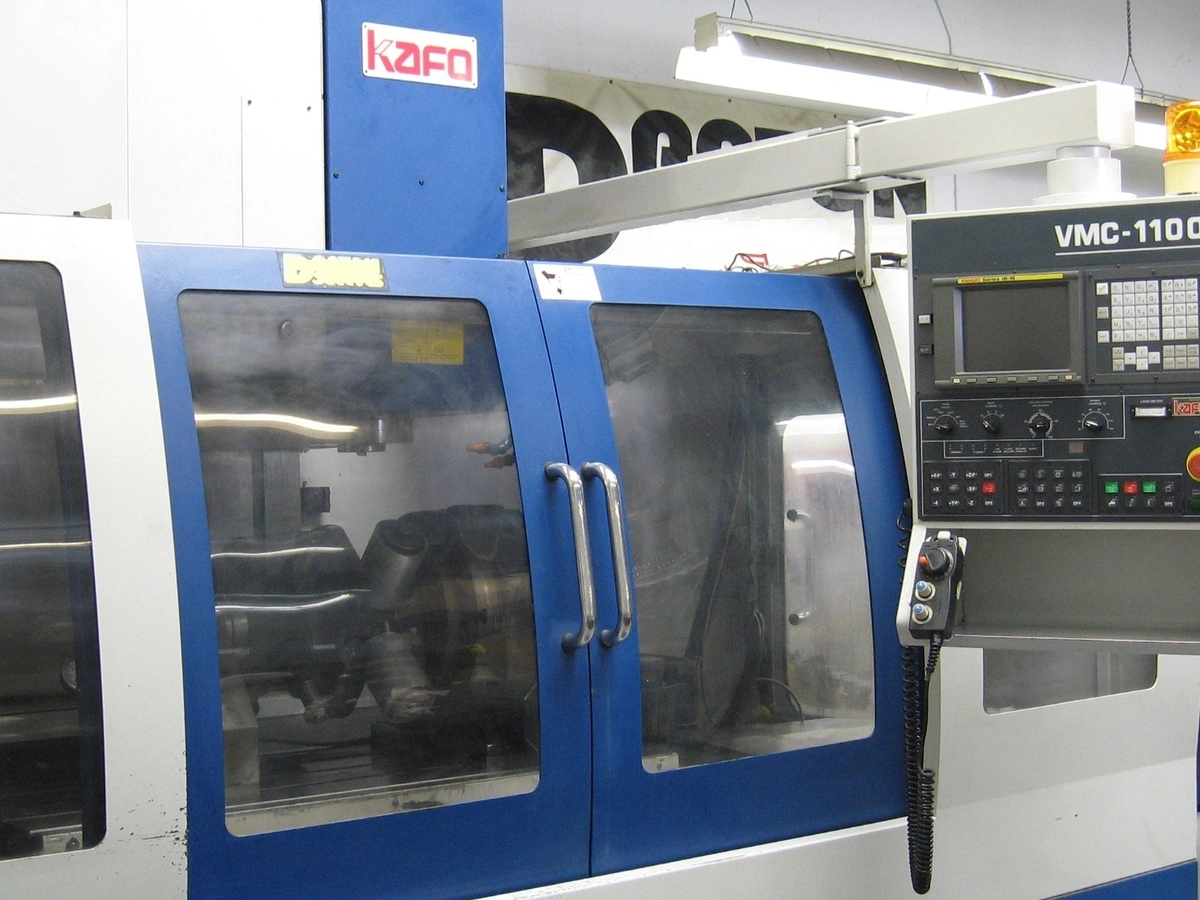

Femco Kafo Model VMC 1100 3-Axis CNC Vertical Machining Center
Table Size 51.1" x 23.6"
Table Load Max 2200lbs
X Travel 43.3"
Y Travel 23.6"
Z Travel 25.6"
Spindle Nose to Table 3.93" 28.93"
Cat 40 Spindle Taper
Tool Capacity: 24 Position Side Mount
2 Speed Gear Drive Spindle 4000 rpm
Rapid Traverse 590XY, 472Z ipm
Main Motor 10hp
Servo Drive Motors: 2.8 HP
Floor Dimensions 127w x 92d x 110h
Equipped with:
Fanuc 18M CNC Control
Box Ways
RS-232
Fourth axis by Troyke DL16.5 B Rotary Table
Blum TC-52 Probe System
Two Speed Gear Drive Transmission on Spindle
Rosedale Coolant Filtration System
Custom Coolant Tank Agitator System to Control Coolant Contamination
Internally Wired With Local Switches to Provide 120VAC Agitator/Skimmer
All Available Factory Manuals
Transferable Fanuc Annual Maintenance Warrenty
Maintenance Reords
Low operating Time 11,659hrs
