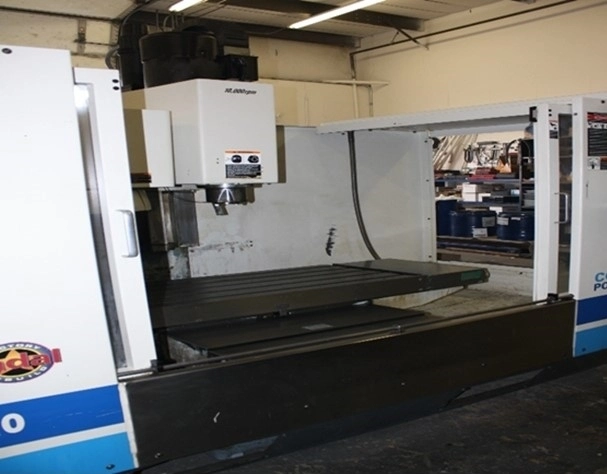

Fadal Model VMC4020 3 Axis Vertical Machining Center (2003)

Fadal Model VMC 4020 3-Axis CNC Vertical Machining Center
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 47.94" X 20"
Spindle Speeds: 10,000 Rpm
Spindle Taper: 40 Cat
Spindle Motor: 15/20 Hp
Automatic Toolchanger: 21 Positions
Spindle Nose To Table: 4" - 24"
Table Load Cap: 1500 Lbs
Rapid Feed Rate (X,Y): 700 IPM
Rapid Feed Rate (Z): 600 IPM
Equipped with:
CNC 88HS CNC Control
Rigid Tapping
Box Ways
Cool Power (Ballscrews and Spindle)
RS232 Port
High Torque Main Motor (22.5 HP Peak)
High Torque Main Motor- 220 Ft. Pounds
High Torque Spindle Speeds- 10,000 RPM
203/440 Volts
Factory Rebuild in 2003
